Brand:Rivet
Origin:China
Force:Pneumatic
Color:White&bue
Mini Order:1Set
Supply:10000Set
deliver goods:Within 3 days

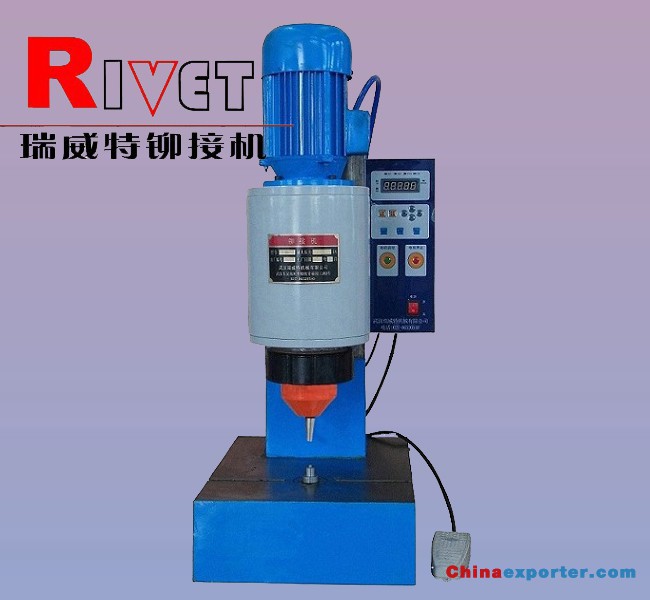

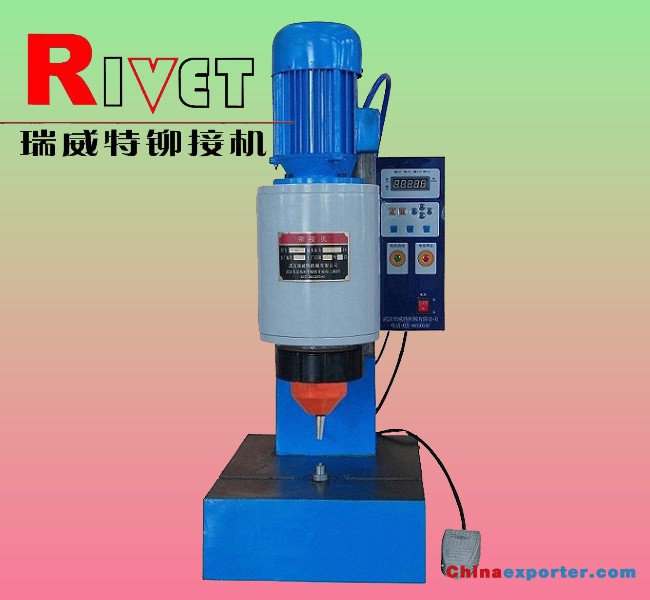

BM12TQ (Pneumatic riveting machine)
Characteristics:
■Desktop with pneumatic driven
■Orbital structure
■Power head adjustable
■Suitable to setting on production line
■Max. riveting diameter Φ12mm
■Stroke speed adjustable
■Pneumatic with stepless regulation
■Customzied available
Scope of application: The instrument appearance, daily hardware, electrical equipment, medical equipment, automobile parts etc.
The model of BM12TQ is a kind of smaller desktop pneumatic riveting machine withorbital structure. The machine's power head adjustment up and down to meet variety ofworkpiece's body and shape. The pneumatic system equipped with aerosollubricating,double way regulation to control piston stroke speed effectively. Electric controlsystem equipped with counter and time relay to easy and simple operations. T-slot onbench to fixing clamping apparatus available, positioning hole is coaxial with spindle toinsure riveting process accuracy at ±0.02mm.
Specification:
▲Max. riveting diameterФ12mm ( solid steel rivet )
▲Max riveting pressure20Kn
▲Stroke Length Range30mm
▲Available working space170mm
▲Throat depth160mm
▲Riveting tool length50mm
▲Angle of inclination4°
▲Motive forcePneumatic
▲Workbench dimensions360mm×290mm
▲Power0.75Kw
▲Physical size400mm×500mm×980mm
▲Net weight280Kg
