Brand:Huatao
material:SS 202,304,316,316L
Mini Order:1screen bas
deliver goods:Within 30 days
The purpose of screening is to separate contaminants such as shives in mechanical pulp,and stickies,plastics ,sand ,metal pieces,and flakes in recycled fiber. This method employs a screening device and the separation is based on size difference between fibers and contaminants. However,depending on their flexibility and /or geometry,not all of the contaminants that are larger in size than fiber can be captured by the screen.
Screening plates of various slit widths such as 0.10mm,0.15mm, 0.20mm,and 0.25mm have been used in separating contaminants.
Suitable for all kinds pressure screen of pulp system
1.Standard hole diameter:more than φ1.2mm
Plate thickness:δ6mm-12mm
2.Screen slot:more than 0.1mm
Plate thickness:δ6mm-12mm
Advanced technology, high machining accuracy, long service life
Bar coating guarantee more than 0.20 mm
Product Description

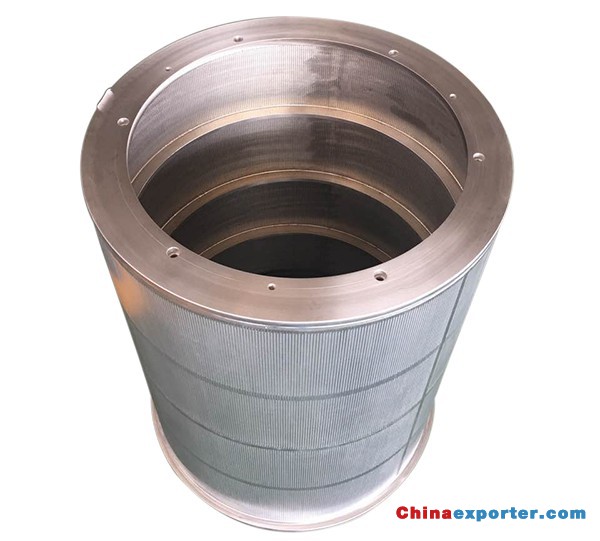

Paper mill stainless steel wedge wire drum screen basket including Inflow and outflow screen basket mainly used for wood pulp screen .From the slag removal to the coarse screen basket, the combination of the hole screen and slotted screen can achieve high quality screening results.With advanced technology, high machining accuracy, long service life.
