材质及电镀 pcb

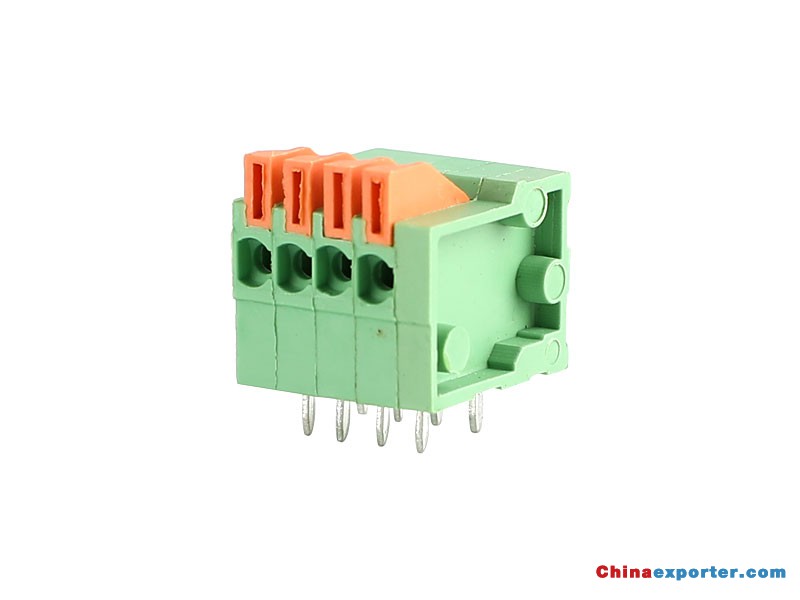

spring terminal blocks suppliers |
MATERIAL | ||
| 间距 | 2.54MM | Pitch | 2.54MM |
| 极数 | 1-XXP | Poles | 1-XXP |
| 焊针 | 黄铜、镀锡 | Contact | Brass、Tin Plated |
| 弹片 | 不锈钢 | Clips | Stainless steel |
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 150V | Rated voltage | 150V |
| 额定电流 | 2A | Rated current | 2A |
| 耐电压 | AC1250V/1Min | Withstanding Voltage | AC1250V/1Min |
| 使用线径 | 24-20AWG | Wire range | 24-20AWG |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
| 剥线长度 | 11mm | Strip length | 11mm |
