Brand:zoomlegend
Belt width:500mm
Conveyor speed:1.25-2m/s
capacity:40-80t/h
Mini Order:1set
Supply:120set
deliver goods:Within 25 days

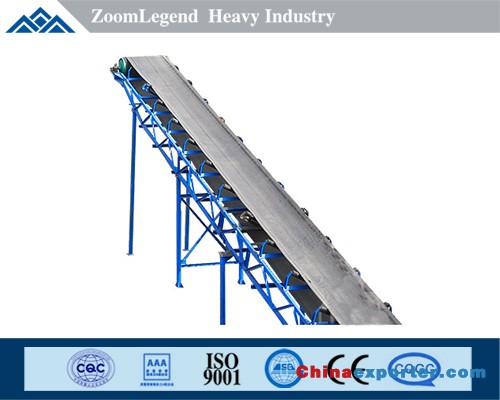

Brief introduction
The belt conveyor can be used in the range of environmental temperature from -20℃ to +40℃, and the temperature of conveying materials is below 50℃.In industrial production, belt conveyor can be used as a link between production machinery and other equipment to form continuous production, so as to realize the continuity and automation of production, improve productivity and reduce labor intensity.
Advantages
1.High adaptability and stability
Can adapt to the environment temperature -20℃ to +40℃, conveying material temperature below 50℃. “人”-shaped belt machine, effective anti-slip, enhance the stability of work.
2.Various models and flexible use
According to different conveying process requirements, it can be either a single conveying system or a combination of several conveying systems, or a horizontal or inclined conveying system with other conveying equipment.
3.Simple structure
Simple structure, standardized parts, quick maintenance and operation.According to the principle of friction transmission, the conveyor belt has large capacity, long transportation distance, stable transportation and low energy consumption.
Technical parameter
|
Belt width (mm) |
Conveyor length(m)/ power(kW） |
Conveyor speed(m/s) |
Conveying capacity(t/h) |
||
|
400 |
≤12/2.2 |
12-20/2.2-4 |
20-25/3.5-7.5 |
1.25-2.0 |
30-60 |
|
500 |
≤12/3 |
12-20/3-5.5 |
20-30/5.5-7.5 |
1.25-2.0 |
40-80 |
|
650 |
≤12/4 |
12-20/4-5.5 |
20-30/5.5-11 |
1.25-2.0 |
80-120 |
|
800 |
≤10/4 |
10-15/4-5.5 |
15-30/5.5-15 |
1.25-2.0 |
120-200 |
|
1000 |
≤10/5.5 |
10-20/5.5-11 |
20-40/11-22 |
1.25-2.0 |
200-320 |
|
1200 |
≤10/7.5 |
10-20/7.5-15 |
20-40/15-30 |
1.25-2.0 |
290-480 |
|
1400 |
≤10/11 |
10-20/11-22 |
20-40/22-45 |
1.25-2.0 |
400-680 |
|
1600 |
≤10/15 |
10-20/22-30 |
20-50/30-75 |
1.25-2.0 |
600-1080 |
