Brand:DEARTO
Temperature range:50℃~300℃
Temperature uniformity:≤0.05℃（100℃）
Heating rate:6.5℃~11.5℃/min
Mini Order:1piece
Supply:500piece
deliver goods:Within 10 days
Introduction

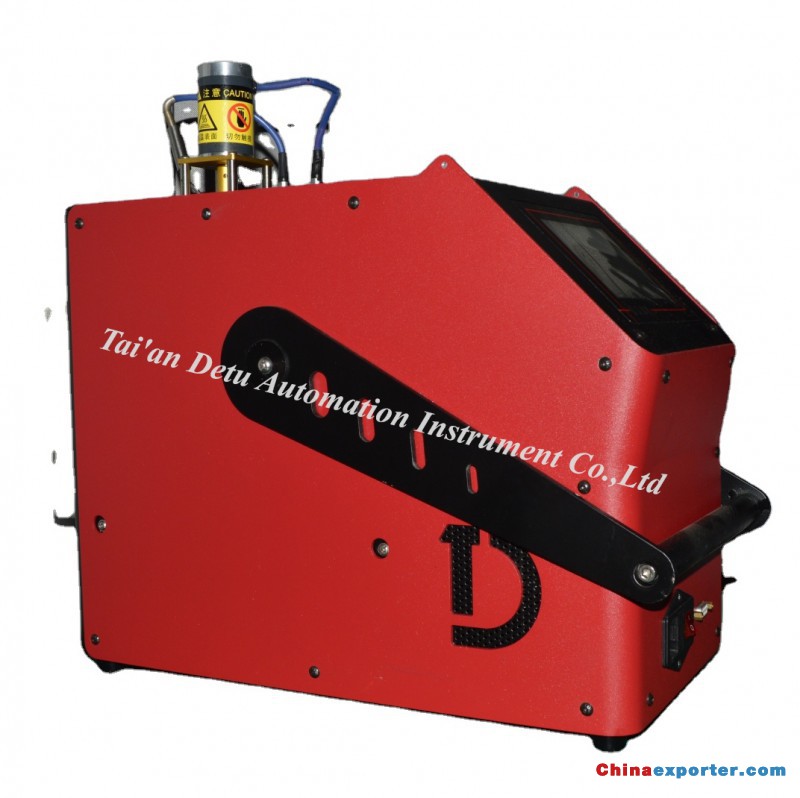

DTS-300B ultra-portable intelligent constant temperature oil tank is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The tank is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification / calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
Features
1.Small and portable, intelligent touch screen control, display temperature difference, fluctuation data;
2.Automatic segment temperature control, rapid temperature rise "zero" overshoot; micro-circulation technology, uniformity of temperature field.
3.Multi-point temperature calibration.
4.Temperature curve display, temperature data is automatically saved to U disk. 5.Equipped with overheating protection, safe and reliable temperature limiting function, and RS-232 communication interface can be connected to the host computer.
|

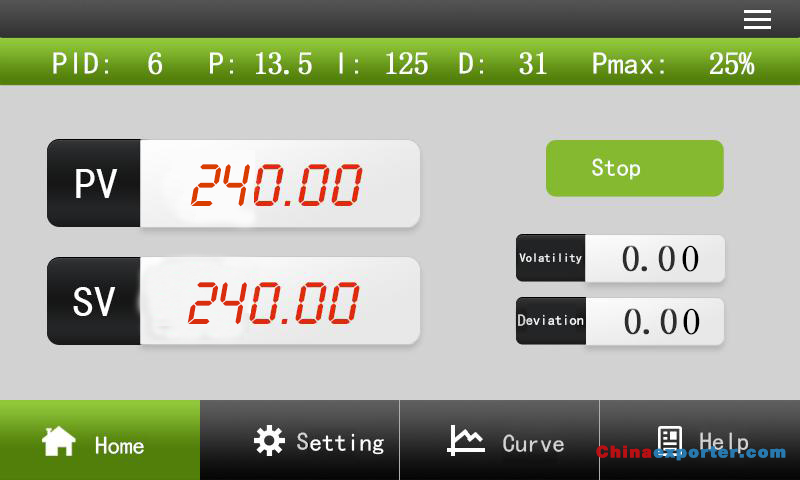

Touch screen operation interface |

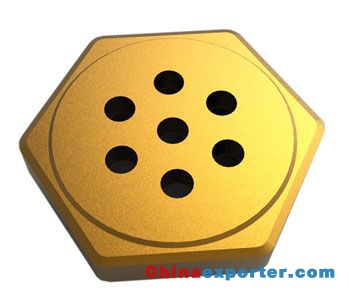

Hole size chart |
|
|
|
Technical Parameters
Product name
Intelligent mini oil bath
Model
DTS-180B
DTS-300B
Temperature range
50℃~180℃
50℃~300℃
Control method
Touch screen
Temperature fluctuation
≤±0.03℃/10min（100℃）
Temperature uniformity
≤0.05℃（100℃）
Heating rate
6.5℃~11.5℃/min
Cooling rate
1.5℃~5℃/min（Natural cooling）
Display resolution
0.001℃
Work area size（mm）
Φ60×300
Dimensions（mm）
420×215×400
Working medium
Silicone oil
Remarks
Flange size can be customized according to customer needs
