Brand:ABC Machinery
Mini Order:1set
Supply:50set
deliver goods:Within 30 days

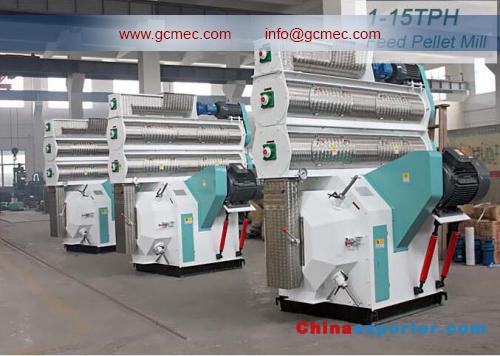

This animal feed machine with large stainless steel steam modulator, conditioning, curing time is long. The poultry pellet machine can be equipped with single, double, multi-layer jacket modulator or dual-axis differential modulator, to meet the production of high-grade livestock and poultry materials and aquatic products of different needs. Transmission parts using high-strength belt drive, smooth operation, low noise. Rotary parts of the selection of high-quality bearings, to ensure high-speed rotation stability. The addition of a permanent magnet to the cutting part of the device, increasing the service life of the main components while reducing the same type of auxiliary equipment. Easy operation, reliable sealing, high production efficiency, low energy consumption, low labor intensity.
| Model No. | Main motor power | Capacity (t/h) | Ring die inner diameter (mm) | Feeder power (kw) | Conditioner motor power (kw) | Size (mm) | Weight (kg) |
| KMPM25 | 22kw | 1-2 | 250 | 0.75 | 1.1 | 1750×650×1750 | 800 |
| KMPM32 | 22kw×2 | 2-5 | 320 | 0.75 | 2.2 | 1900×1800×1650 | 2000 |
| KMPM35 | 30kw×2 | 3-7 | 350 | 0.75 | 2.2 | 2100×2000×1850 | 2400 |
| KMPM40 | 45kw×2 | 4-10 | 400 | 1.5 | 4 | 2200×2000×2150 | 2900 |
| KMPM45 | 55kw×2 | 6-15 | 450 | 1.5 | 4 | 2300×2350×2150 | 3500 |
