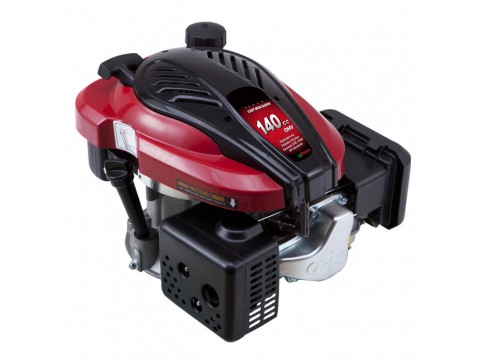

Vertical gasoline engine
Click image to view original image
Brand: Kimcredence
型号： Vertical gasoline engine
规格： 2.5-4.5KW
Price: Negotiable
Min.Order: 20
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: 2106-02-07
Updated on: 2021-11-29 12:11
Hits: 128722
Enquiry
Company Detail


Details

Mode  1P61FC 1P65FC 1P65FE-2 1P65FE-4 1P70FE 1P70FC 1P70F-3 1P75F
Engine type  Single cylinder,4stroke, forced cooling ,OHV
Net power  2.5 kW/3600rpm 2.7 kW/3600rpm 2.9 kW/3600rpm 2.4 kW/3600rpm 3.2 kW/3600rpm 3.5 kW/3600rpm 4 kW/3600rpm 4.5 kW/3600rpm
Net torque  7.0 N.m/2500rpm 8.3/N.m/2500rpm 9.5 N.m/2500rpm 9.5 N.m/2500rpm 9.0 N.m/2500rpm 10.5 N.m/2500rpm 12 N.m/2500rpm 14 N.m/2500rpm
Fuel consumption  ≤395g/kW·h ≤395g/kW·h ≤395g/kW·h ≤395g/kW·h ≤395g/kW·h ≤395g/kW·h ≤395g/kW·h ≤395g/kW·h
Idle speed  2200±150 rpm 2200±150 rpm 1800±150 rpm 1800±150 rpm 2200±150 rpm 2200±150 rpm 1800±150 rpm 1800±150 rpm
Bore×Stroke  61mm×48mm 65mm×48mm 65mmx50mm 65mmx42mm 70mmx45mm 70mm×51mm 70mmx50mm 75mmx50mm
Displacement  140cc 159cc 166cc 139cc 173cc 196cc 196cc 224cc
Compression ratio  7.3:1 7.6:1 8.5:1 8.5:1 7.1:1 7.1:1 8.3:1 8.5:1
Lubrication system  Splash
Starting system  Recoil start/Electic-start
PTO shaft rotation  Anti-clockwise(from PTO side)
Valve Clearance  input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,   input valve： 0.10-0.15mm,
output valve：0.15-0.20mm output valve：0.15-0.20mm output valve：0.15-0.20mm output valve：0.15-0.20mm output valve：0.15-0.20mm output valve：0.15-0.20mm output valve：0.15-0.20mm output valve：0.15-0.20mm
Spark plug clearance  0.7~0.8mm 0.7~0.8mm 0.7~0.8mm 0.7~0.8mm 0.7~0.8mm 0.7~0.8mm 0.7~0.8mm  0.7~0.8mm
Ignition system  Transistorized magneto ignition
Air cleaner  Semi-dry,dual element
Dimension  371×338×275mm 371×338×275mm 385×340×250mm 385×340×250mm 379×358×278mm 385×358×278mm 384×341×258mm 384×340×258mm
Net weight  11.7kg 11.8kg 9kg 8.8kg 12.0kg 12.8kg  12.8kg 13.7kg
