Roller shutter door making machine

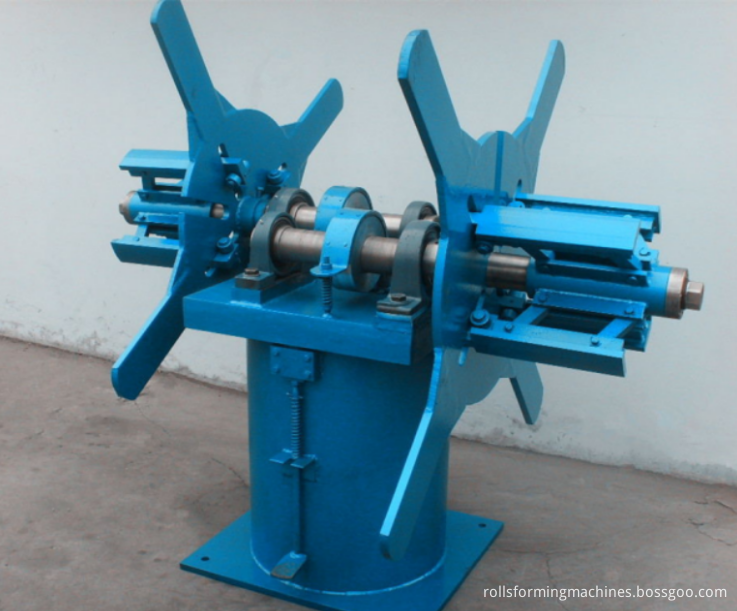

Decoiler SystemUsage: It is used to support the steel coil and uncoil it in a
turnable way. Passive uncoil pulled by roll forming system
Capacity: Each head 1.5 Tons
Loading width: Max 300 mm
Valid expanding range for coil inner diameter: 450-550 mm

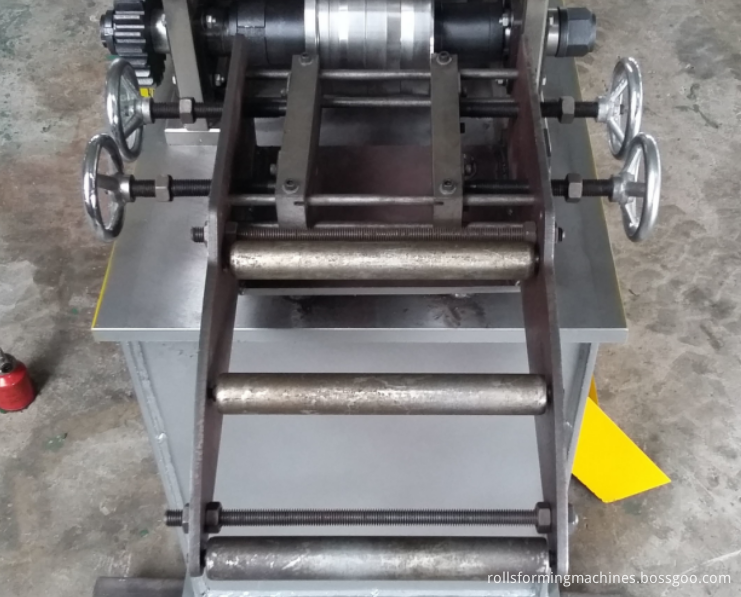

Feeding System
Usage: Put the raw material (steel plate) through the beach
to manufacture and process, it can guarantee that the
products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the
function of locate angle iron.

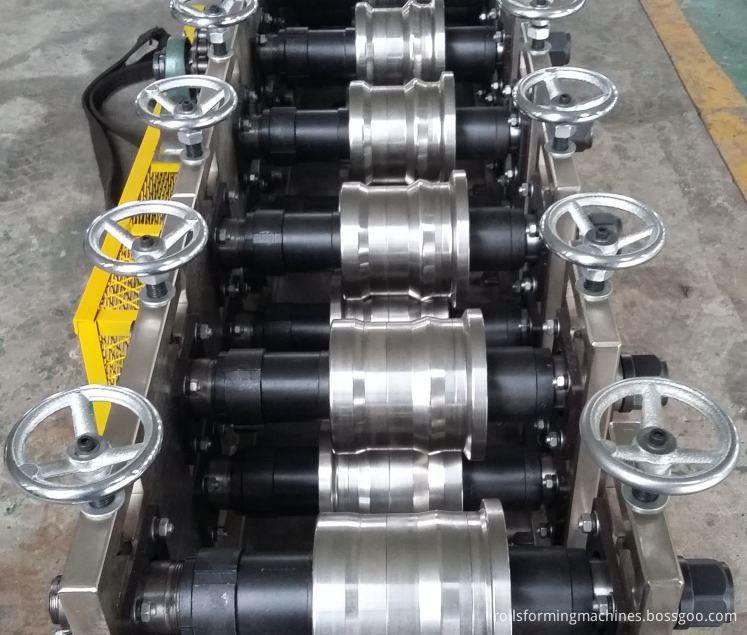

Main Roll Forming System
Usage: In order to keep the product shape and precision,
adopts welded sheet structure, motor reducer drive, gear
transmission, roller surfaces polishing, hard plating , heat
treatment and galvanizing treatment .
Length of the main part: about 3500 х 900 х 1000 mm
Weight of main part: 3 tons
Voltage : 380 V 50 HZ 3 Phase
frame type: Memorial arch frame
Drive mode: Gear
Material of rollers: GCr 12 quench with 58-60°
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 50 mm
Number of rollers : 12 rollers
Main power: 5.5 kw
Forming speed: 15-20 m/minute
Cutting System
Usage: Automatic cutting controlled by PLC. It adopts the
hydraulic drive and automatic location to decide the
dimension and cut the target products.
Power supply : Hydraulic power
Material of blades : Gcr 12 quench 58-60°
Components: It contains one set of blade, one hydraulic tank
and one cutter machine

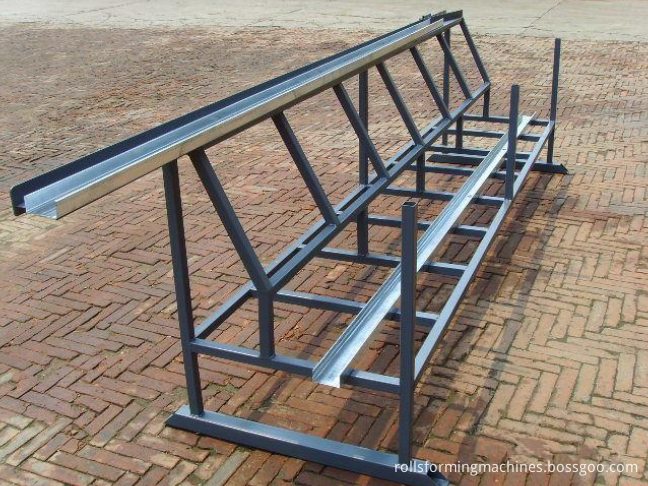

Receiving table
It adopts welded steel and supported roller to transmit the products.
Table quantity: 1 sets
Table length : 3 m/per set
