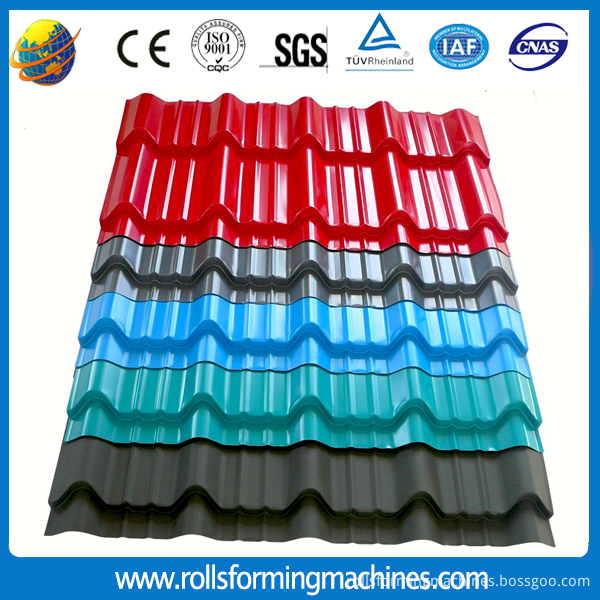

Glazed bamboo type metal tile manufacturing equipment

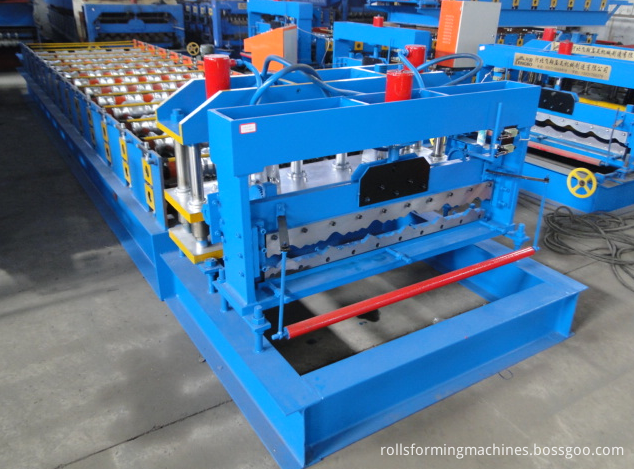

Glazed roof tile roll former is a kind of construction tile forming machine widely used by all kind of production factory made roof and wall tile for
factories, residential, hotels, villas and other industrial and civil construction
Glazed Roof Tile Roll Former Construction Tile Forming Machine Production process

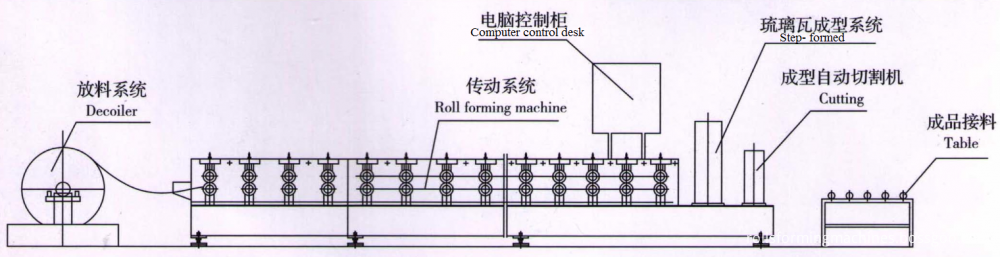

Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting
→Products receiving
Components of production line
|
No. |
Glazed Roof Tile Roll Former Construction Tile Forming Machine |
Unit |
Qty |
|
1 |
Manual decoiler |
set |
1 |
|
2 |
Main forming machine |
set |
1 |
|
3 |
PLC control system |
set |
1 |
|
4 |
Hydraulic pump station |
set |
1 |
|
5 |
Step-formed mechanism |
set |
1 |
|
6 |
Post cut |
set |
1 |
|
7 |
Electric motor |
set |
1 |
|
8 |
Output table |
set |
1 |
Production parameters
Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness:0.3- 0.8 mm
Material hardness:195 mpa---350 mpa
Material width:1250 mm Wave length:194 mm
Formed width: 970 mm Step height: 30 mm
Step length:150 mm---380 mm(adjustable) Forming speed:4 m/min
