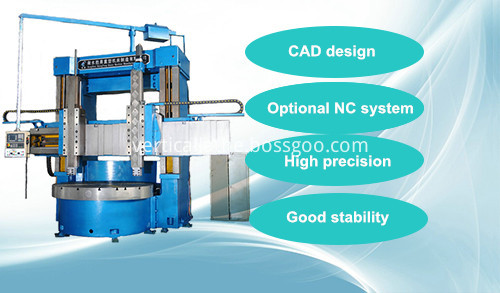

Vertical turret lathe machine specifications C5232

Vertical Turret Lathe Machine is suitable for inner and outer cylinder surface turning,inner and outer taper surface turning,end face turning,curving,slotting ,The vertical lathe CNC type can process inner and outer taper surface turning roughly and finely of the ferrous-metal,non-ferrous metal or part non-metal componerts with high speed alloy steel cutter. Our castings of vertical lathe cnc type adopt adopt the heat symmery structure with unitary casting,especially guide way of worktable adopt constant current dead load guideways,as well as constant temperature codant,so that vertical turret lathe machine can keep a high rotating accuracy and high rigity and heat stablity.

Technical specification of Vertical turret lathe machine specifications C5232

1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum Weight of workpiece 10/20 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight about 36-50 t

Features of VTL vertical turret lathe machine:
