Reasonable price Boring Mills & VTLs For Sale

Reasonable Boring Mills & VTL machine is designed by FEA (Finite Element Analysis) especially for high-efficiency, high-rigidity and heavy-duty cutting. it  can do the high-speed cutting of the internal and external cylindrical surface, internal and external conical surface, arc, screw and rotary surface.

1 Workbench has the features of high running accuracy, large carrying capacity and small thermal deformation.

2 Table spindle is centered by high-precision double-row short roller bearing whose radial clearance can be adjusted.

3 All the casting adopt high quality resin sand casting process after aging treatment. The steel materials has been quenched and conducted with hardening treatment.

Vertical Turning Lathes VTL machine model:

C5112/C5116/C5118/C5120/C5123/C5125/C5126

Maximum turning diameter:1250 1600 1800 2000 2300 2500mm

Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm

Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t

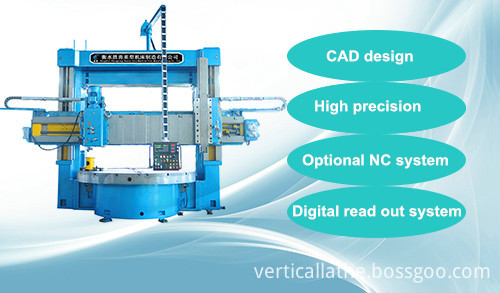

Technical specification of Vertical lathe VTL machines C5232

1 Maximum turning diameter 3150 mm

2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum Weight of workpiece 10/20 t

4 Table diameter 2830 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1735 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55 kw

11 Machine weight about 36-50 t
