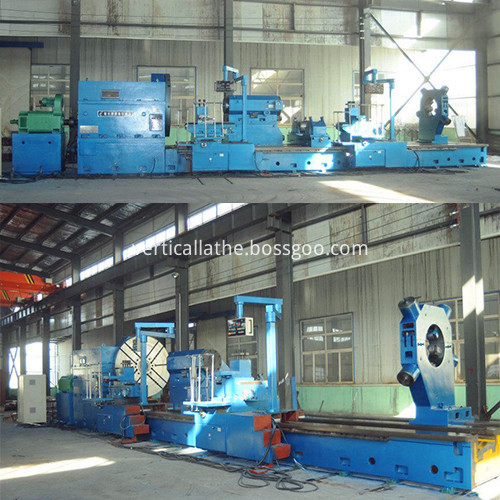

Large horizontal Lathe machine CW61250

Product name : Large horizontal Lathe machine CW61250

Application fields of Large horizontal Lathe machine CW61250

The machine is suitable for facing turning external and internal cylindrical surfaces as well as cutting of a wide range of different metric, module and diametral pitch threads .

Large horizontal Lathe machine model:

CW61125/CW61145/CW61160/CW61200/CW61125/CW61315

CK61100/CK61125/CK61160/CK61200/CK61250

Technical specification of Large horizontal Lathe machine CW61250

1 Maximum swivel diameter on the bed 2500 mm
2 Maximum turning diameter over carriage 2200 mm
3 Maximum length of workpiece 120dm
4 Maximum weight between center 63t
5 Diameter of faceplate 2000mm
6 Maximum torque of faceplate 100KN.m
7 Range of spindle speeds 0.63-125 r/min
8 Maximum cutting force of carriage 70 KN
9 Total cutting force 120 KN
10 Range of feed rates ( long) 0.265-500 mm/min
11 Range of feed rates(Trans ) 0.106-200 mm/min
12 Range of feed rates(longitudinal) 0.053-100 mm/min
13 Rapid speed of of carriage( long) 3000 mm/min
14 Rapid speed of of carriage( Trans) 1200 mm/min
