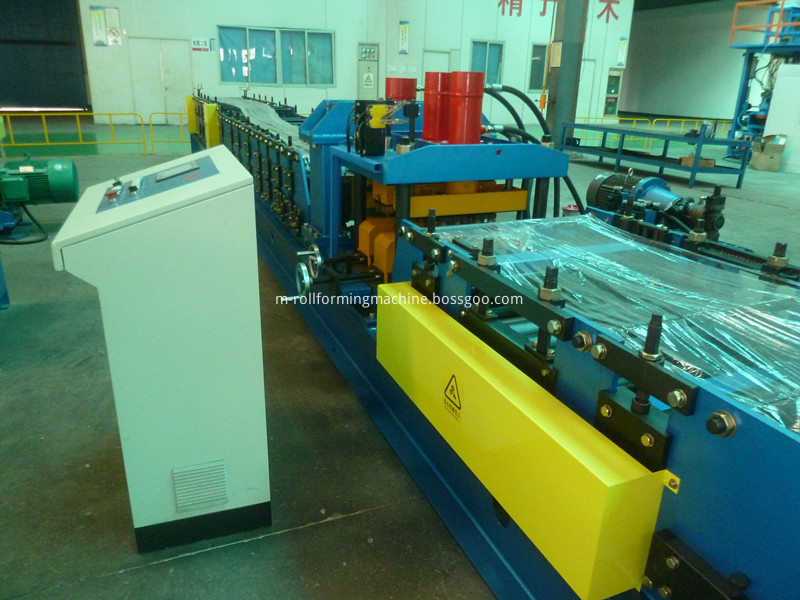

Steel wall panel roll former making machine

Click image to view original image

Brand:	maxmach
Price:	Negotiable
Min.Order:	1 Set/Sets
Supply	700 Set/Sets
Delivery:	Shipment within 45 days since the date of payment
Address:	China
Valid until:	2106-02-07
Updated on:	2017-08-24 01:00
Hits:	3784

Company Detail

HangZhou Roll Forming Machinery Co.,Ltd1
[Credit File]
Already 0.00 USDSecurity deposit
ContactsMaxwell Xiang(Mr.)
Member [Offline] [Add to my friend] [Send mail]
Phone
Mobile
AreaChina
AddressHangzhou FengHuang plaza,YaQian town,XiaoShan

Details

Steel wall panel roll former making machine Description:

This Steel wall panel roll former making machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which required, and stacking the finishing panel automatically. Steel wall panel roll former making machine adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, Steel wall panel roll former making machine is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical Parameters for Steel wall panel roll former making machine:

Item		Para	Remark
Suitable material	Type	Galvanized Steel/Aluminum
	Thickness (mm)	0.3-0.8
	Yield Strength (Mpa)	230 - 300Mpa
	Width (mm)	1220mm
	Wet of the Coil (t)	5tons
	OD	Φ1350mm
	ID	Φ508 mm/Φ610mm
Material of rollers		NO.45 steel with chrome plate
Forming Speed (m/min)		about20M/min	Not including cutting time
Power Source		AC380V, 60 Hz, 3Phase	According to Buyer request
Total power		about9KW	Depend on final design
Dimension (L×W×H, m)		See the layout	Depend on final design

Working Process for Steel wall panel roll former making machine :

Decoil →Guiding system →Roll forming →Post Cutting →Output the finished products to supporter

Components Parts of the Steel wall panel roll former making machine:

Model/Name	Quantity	Technical Description
Cantilever Decoiler	1set	Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control
Feeding guide device	1set	1) Roller material: No.45 steel with surface hard chrome painted. 2) Roller inner supporting structure type: guide column 3) Planetary gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 4) Cutting blade material Cr12 quenched treatment
Roll forming system	1set
Post-cutting device	1set
Product Supporter	1set	For supporting the finished panels and the length of each piece is 2m, two pieces.
4. Hydraulic system	1set	Hydraulic station
5. Electric control system	1set	PLC Control, encoder automatic cutting in length Operation stage: button + touch screen AC frequency for adjusting the speed
