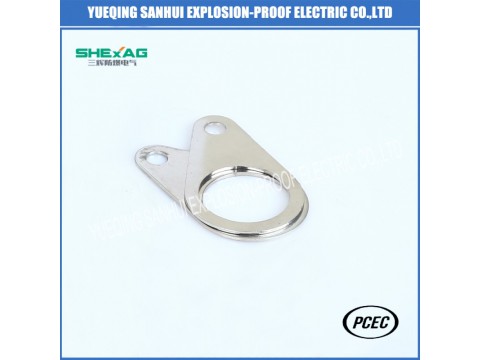

Earth Tag
Product Features
Earth tag is used for grounding connection between cable glands inlet and equipment.Provides an earth bond attachment for a cable gland.
The earth tag shape may vary for different sizes.
Manufactured in Brass as standard.
The earth tag shape may vary for different sizes.
Manufactured in Brass as standard.
| Specifications | M20 | M25 | M32 | M40 | M50 | M63 | M75 |
| G1/2" | G3/4" | G1" | G1 1/4" | G1 1/2" | G2" | G2 1/2" | |
| Rated short circuit current(KA) |
3.06 |
4.00 |
5.40 |
7.20 |
10.40 |
10.40 |
10.40 |
PVC SHROUD
Product Features
The shield is made of neoprene,which is suitable for BDM series explosion-proof cable glands,it can protect the glands.
Outline dimension
| Specifications | 15 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 115 |
| A | 27 | 41 | 50 | 60 | 75 | 90 | 105 | 130 | 140 |
| L | 170 | 190 | 225 | 255 | 285 | 20 | 360 | 405 | 435 |
| L1 | 120 | 120 | 140 | 150 | 155 | 175 | 185 | 200 | 21 |
