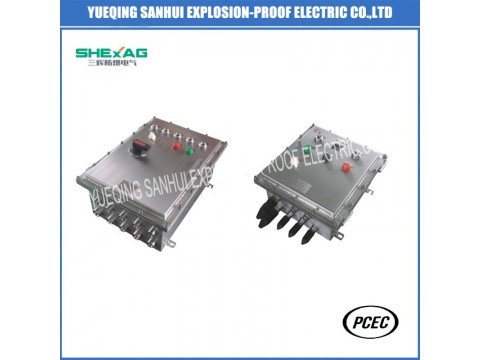

Click image to view original image
Features
1.Materials:CS or SS,argon protected precision welding.
2.Built-in AC contactor,thermal relay,circuit-breaker,time delay relay,current instrument transformer,volmeter,ammeter,transfer switch and indicator lamp.
3.It’s with overload,short circuit,low voltage,short phase protection functions.
4.It can be made on request
5.Wiring with steel tube or cable
Main technical parameters
|
Type |
Rated current(A) |
Power of controlled motor(KW) |
Thermal relay’s sotting current(A) |
|
SH-KZX17-12X |
26 |
13 |
15 |
|
SH-KZX17-17X |
33 |
17 |
19 |
|
SH-KZX17-22X |
42.5 |
22 |
25 |
|
SH-KZX17-30X |
58 |
30 |
34 |
|
SH-KZX17-40X |
77 |
40 |
45 |
|
SH-KZX17-55X |
105 |
55 |
61 |
|
SH-KZX17-75X |
150 |
75 |
85 |
|
SH-KZX17-95X |
190 |
95 |
100 |
Outline dimension
|
Type\size |
A(mm) |
B(mm) |
C(mm) |
|
SH-KZX17-13X |
680 |
400 |
320 |
|
SH-KZX17-17X |
|||
|
SH-KZX17-22X |
|||
|
SH-KZX17-30X |
700 |
420 |
350 |
|
SH-KZX17-40X |
|||
|
SH-KZX17-55X |
|||
|
SH-KZX17-75X |
1350 |
600 |
360 |
|
SH-KZX17-95X |
For more details,welcome to check our website:www.exproofcablegland.com
