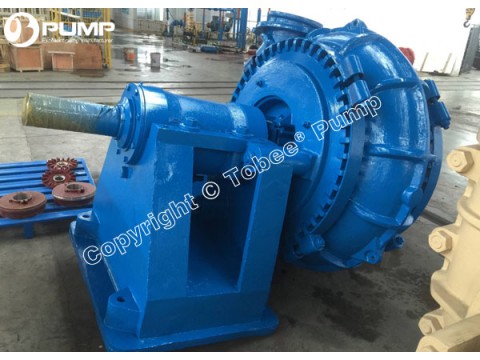

Tobee 18x16 inch alluvial dredge pump

Click image to view original image

Brand:	Tobee Pump
Size：	18" x 16"
Speed：	720-4320m3/h
Head：	12-48m
Price:	1200.00USD/piece
Min.Order:	1 piece
Supply	2000 piece
Delivery:	Shipment within 20 days since the date of payment
Address:	China
Valid until:	2106-02-07
Updated on:	2018-12-14 18:12
Hits:	2680

Company Detail

Tobee Pump Co.,Limited
[Credit File]
Already 0.00 USDSecurity deposit
ContactsTobee Pump(Ms.) Sales Engineer
Member [Offline] [Add to my friend] [Send mail]
Phone
Mobile [Send SMS]
AreaChina
AddressHi-tech Development Zone | Shijiazhuang City | Hebei Province | China

Details

Tobee^® TG18x16TU alluvial dredge pump Performance Parameter:

Model

Max.Power P

(kw)

Capacity Q

(m3/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(%)

NPSH

(m)

Impeller Dia.

(mm)

TG18/16TU

1200

720-4320

12-48

250-500

72

3-6

1067

Tobee Pump is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life, It is mainly suitable for delivering slurry, sand, gravel, sludge, mud, blast slag and other abrasive medium. Especially suitable for the high flow, high concentration and high head working conditions.
Main Products:

Horizontal slurry pumps, Vertical slurry pumps, Warman slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts

Keywords:

river stone suction pump
centrifugal sand pump
mining gravel pump
gravel pump
sand dredging pump
sand pump
dredge pump
sand water pump
large capacity sand pump
12x10 gravel pump
sand gravel pump
pump sand
sand dredge pump sale
sale mud pump
