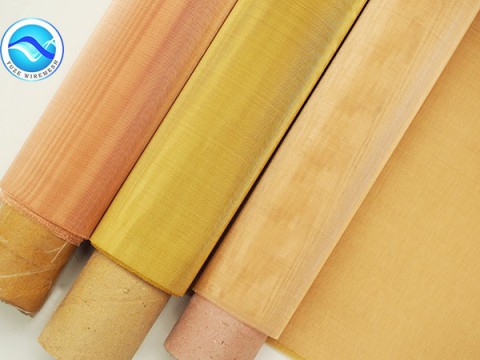

Copper, Brass & Bronze Wire Mesh
Applications: Pharmacy, metal power filtration and separation; ceramic printing and shielding etc.
Raw material: Copper Brass: H65, H80, Phorsphor Bronze Csn6.50.4.
Weaving Patten: Square mesh, Plain Weave, Twill Weave.
Copper Wire Mesh
Copper Wire Mesh has a high percent of copper. It is normally used in a corrosion application where brass is not suitable.
Phosphor Bronze Wire Mesh
Due to its physical properties phosphorous bronze wire mesh is ideal for weaving. It has a wide range of applications including filtration, to screening. Phosphorous Bronze Wire Mesh is stronger than brass and can withstand a great deal of cold working.
Brass Wire Mesh
This is a non-rusting material and is used in some industrial and architectural applications.
| Mesh | Wire Dia. (MM) | Opening(mm) | ||
| SWG | mm | inch | ||
| 6mesh | 22 | 0.711 | 0.028 | 3.522 |
| 8mesh | 23 | 0.610 | 0.024 | 2.565 |
| 10mesh | 25 | 0.508 | 0.020 | 2.032 |
| 12mesh | 26 | 0.457 | 0.018 | 1.660 |
| 14mesh | 27 | 0.417 | 0.016 | 1.397 |
| 16mesh | 29 | 0.345 | 0.014 | 1.243 |
| 18mesh | 30 | 0.315 | 0.012 | 1.096 |
| 20mesh | 30 | 0.315 | 0.0124 | 0.955 |
| 22mesh | 30 | 0.315 | 0.0124 | 0.840 |
| 24mesh | 30 | 0.315 | 0.0124 | 0.743 |
| 26mesh | 31 | 0.295 | 0.0116 | 0.682 |
| 28mesh | 31 | 0.295 | 0.0116 | 0.612 |
| 30mesh | 32 | 0.247 | 0.011 | 0.573 |
| 32mesh | 33 | 0.254 | 0.010 | 0.540 |
| 34mesh | 34 | 0.234 | 0.0092 | 0.513 |
| 36mesh | 34 | 0.234 | 0.0092 | 0.472 |
| 38mesh | ||||
