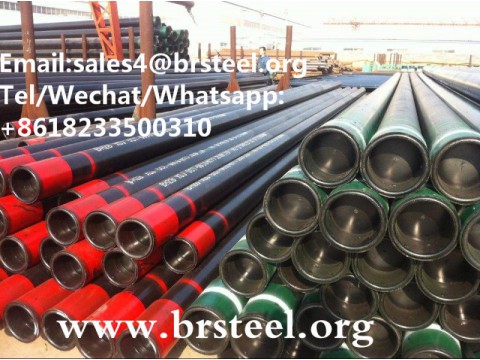

Seamless steel tubes for oil tubing

Specifications of OCTG tubing

Dimension range (OD inch): 2-3/8----4-1/2

Dimension range (OD mm): 60.32----114.3

Type of upset: NUE, EUE, Plain end

Standard: API SPEC 5CT

Main Steel Grade: H40, J55, N80, N80Q, L80, L80-1, L80-9Cr, L80-13Cr, P110 etc

Type of Tubing: Non-upset tubing (NU), External-upset tubing (EUE), Integrated Joint (IJ)

Length:R1( 6.10-7.32m ), R2( 8.53-9.75m), R3(11.58-12.80m)

Pipe Type: Seamless (SMLS)

Surface Treatment: Anti-corrosion Water based Paint

Packing: Protection Caps on both ends and in bundles with steel strips and two tags as per export requirements

Application: Used as the architectural retainer for the walls of oil, gas well.
