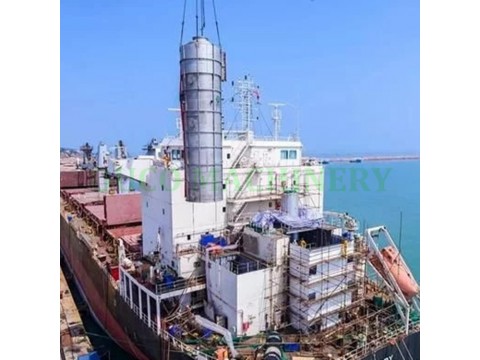

OUCO Environmental Industrial Desulfurization Tower
Product Description
Seawater-method flue gas desulfurization system that uses seawater as an absorbent without using lime or other chemicals commonly used in conventional methods. Overseas, demand for flue gas desulfurization facilities is growing in line with increasing concerns over air pollution. Under these market circumstances, Seawater Flue Gas Desulfurization systems have been drawing keen attention, as these systems help to significantly reduce equipment & operation costs.
Technical Parameters
| Pot EGCS Type | Unit | POT DeSOx-30-O/C/H | POT DeSOx-60-O/C/H | POT DeSOx-75-O/C/H | POT DeSOx-90-O/C/H | POT DeSOx-100-O/C/H | POT DeSOx-120-O/C/H | POT DeSOx-160-O/C/H | POT DeSOx-180-O/C/H | POT DeSOx-210-O/C/H | POT DeSOx-300-O/C/H | POT DeSOx-400-O/C/H | POT DeSOx-470-O/C/H | POT DeSOx-550-O/C/H | POT DeSOx-630-O/C/H | POT DeSOx-700-O/C/H |
| Total Engine Power | MW/h | 4 | 8 | 10 | 12 | 13 | 15 | 20 | 23 | 27 | 38 | 50 | 60 | 70 | 80 | 90 |
| Exhaust Gas Flow | Kg/h | 31576 | 62846 | 76427 | 94859 | 102764 | 118574 | 158099 | 181813 | 213433 | 300387 | 395247 | 474296 | 553345 | 632395 | 711444 |
| Out Diameter | m | 2 | 2.8 | 3.1 | 3.4 | 3.6 | 3.8 | 4.4 | 4.7 | 5.1 | 6.1 | 7 | 7.6 | 8.2 | 8.8 | 9.4 |
| Height of EGCU | m | 14 | 15 | 15.5 | 15.5 | 15.5 | 16 | 16 | 16 | 16 | 17 | 17 | 18 | 19.5 | 20 | 20 |
| Weight of EGCU | T | 12.1 | 15.4 | 16.7 | 17.9 | 18.5 | 19.6 | 22 | 23.3 | 25 | 29 | 32.8 | 35.6 | 38.3 | 40.8 | 43.2 |
| Max Power Load(for open loop mode) | KW | 100 | 168 | 202 | 236 | 253 | 287 | 371 | 422 | 490 | 676 | 881 | 1050 | 1220 | 1389 | 1560 |
| Scrubber Efficiency |
|
>98%(Compliance with MARPOL/MEPC requirements) | ||||||||||||||
| Max Temp. Inlet | ºC | 450 | ||||||||||||||
| Back Pressure | Pa | <1000 | ||||||||||||||
| Run Dry(Yes/No) |
|
Yes | ||||||||||||||
