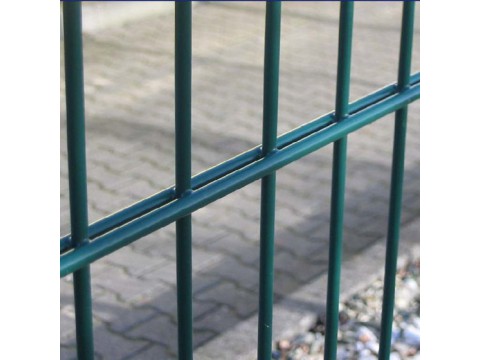

Double Wire Fence belong to a type of rigid but unobtrusive mesh fencing system.
Double Wire Fence belong to a type of rigid but unobtrusive mesh fencing system. It is commonly applied as a perimeter fence in industry, sports ground, or commercial premises where a strong mesh fencing system is required.
Double Wire Fence Materials: Heavy Low Carbon Wire, Heavy Mild Steel Wire, Stainless Steel Wire.
Double Wire Fence Specification:
Wire Dia.:2x6mm, 2x8mm
Mesh Openings:50*200 mm, 55*200 mm, 50*100 mm,50*150 mm ,etc.
Fence Width:2500mm
Height Fence:630,1030,1230,1430,1630,1830,2030,2230,2430mm
| Double Wire Fence | |||||
| Height×width panel mm | Mesh size mm | Wire diameter | Post of height mm | ||
| Wire dia mm | Wire dia mm | Wire dia mm | |||
| 630×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1100 |
| 830×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1300 |
| 1030×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1500 |
| 1230×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1700 |
| 1430×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1900 |
| 1630×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2100 |
| 1830×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2400 |
| 2030×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2600 |
| 2230×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2800 |
| 2430×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 3000 |
Double Wire Fence Process:
straighten & cut short the wire --- welding --- bending --- galvanizing --- parkerizing ---powder/pvc coating ---packaging
Double Wire Fence Colors:
All kinds of colors are available such as green, blue, red, yellow, white and black,and so on,
Double Wire Fence Packaging & Shipping:
1>fence panel:plastic film+wood/metal pallet
2>fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet
3>accessory:small plastic bag+carton box
4>according to your requirement
Double Wire Fence Applications:
· Construction reinforcement, the ground for the tunnels, bridges, highway, garden, floor, airport and wharf
· Construction of wall body
· Mobile fencing used in excursions on the riding trail
· Buildings and factories, as animal enclosure and fence in agriculture
· Horticulture industry as tree guards, plant protection
