I. Applications:

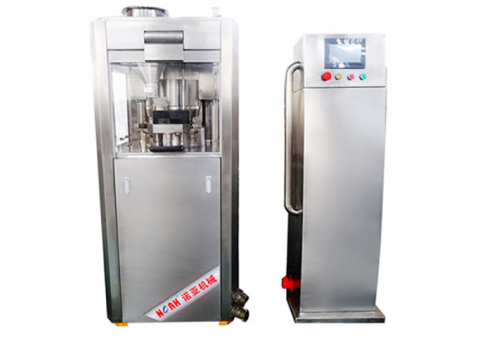

GZP-17 Rotary Tablet Press Machine provides new design principle, which makes standardization, modularity and series design come true. The characteristic of machine is high-precision, sub high-speed and automation. It is the best choice for high output and large batch production
II. Features
Design of GMP
High quality all stainless steel construction
Special oil-proof﹠dust-proof sealing system
Reliable safety sealing system and dust-proof system
High visibility isolated door to prevent cross contamination
Easily remove and install parts for quick machine’s maintenance
360°design for easy observation and cleaning
Technical Parameters of GZP-17 Rotary Tablet Press Machine :
| Name |
GZP-26 |
GZP-22 |
GZP-17 |
||
| Number of station |
26 |
22 |
17 |
||
| Punch standard(EU standard) |
EU BB |
EU B |
EU D |
||
| Max. Output(pcs/h) |
120100 |
101600 |
78500 |
||
| Max. Main Compression Force(KN) |
100 |
100 |
100 |
||
| Max. Pre-compression Force(KN) |
16 |
16 |
16 |
||
| Max. Tablet Diameter(mm) |
10 |
16 |
22 |
||
| Max. Filling Depth(mm) |
12 |
12 |
16 |
||
| Max. Tablet Thickness(mm) |
6 |
6 |
8 |
||
| Main motor power |
5.5KW |
||||
| Rotary speed |
1430r/m |
1430r/m |
970r/min |
||
| Voltage Frequency |
3Phase 380V 50HZ |
||||
| Noise Db(A) |
<75 |
||||
| Overall size (m) L x W x H |
1X1.2X1.7 |
||||
| Main weight (Kg) |
1250 |
||||
