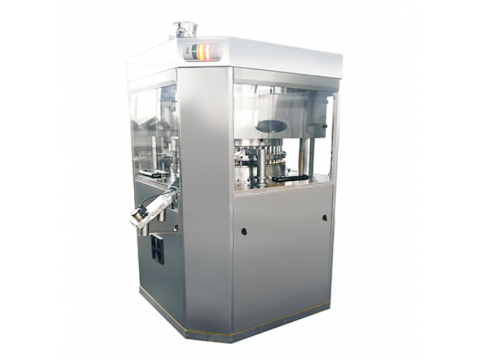

This series machine is with double-slide，large pressure high speed tablet press, adopts advanced hands-free wheel servo control mode, simple and fast, to achieve product standardization, modularization, serialization.
Adopt precise screw rod continuous slant supporting framework, precisely control feeding cam, which can control 7-11 punches & die, weight difference between ±2%。
This series products has the advantages of high precision, high speed and high automation program, fully compliant with GMP requirements, it can press double-layer color film, ring-like tablet, round shape tablet, engraving tablet and irregular shape tablets, it is suitable for high-efficiency and precision tablet pressing in pharmaceutical, food, chemical and other industries.
Feature
1. Anti-seepage oil and dustproof device;
2. Structure that is easy to disassemble to ensure the maintainability of the equipment;
3.Automatic lubrication system,which make every parts lubrication more precise.
4.Lengthen the ration cam, which increase the number of controlled punches & die, tablet weight more precise.
5.Adopt arm pressure function. pressurized quick and big torque
6.Multi-layer three quants forced feeding device ,material filling more uniformity.
7.Trash system: The system can carry out single piece automatic waste rejection and batch automatic waste rejection.
Technical Parameters:
| Model | PG-45 | PG-55 | PG-69 | PG-75 |
| Punch&die type(EU) | D | B | BB | BB |
| Number of press station | 45 | 55 | 69 | 75 |
| Max tablet diameter(mm) | 25 | 16 | 13 | 13 |
| Max abnormal prolate axis size(mm) | 25 | 18 | 16 | 16 |
| Max output(Tablet/h) | 390000 | 470000 | 580000 | 630000 |
| Max filling depth | 20 | 18 | 18 | 18 |
| Max main pressure(KN) | 100 | 100 | 100 | 100 |
| Max Pre Preesure(KN) | 20 | 20 | 20 | 20 |
| Idle load noise dB(A) | <75 | |||
| Power | 380, 50hz 10.5-13kw | |||
| Size L*W*H(MM) | 1260*1260*1950 | |||
| Weight(kg) | 3750 | |||
| Double-layer tablet or ring tablet function(for your choice) | ||||
