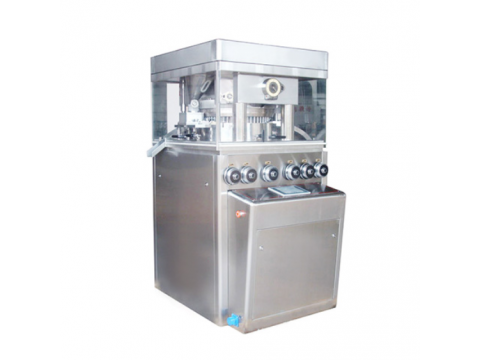

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
1.The housing is fully closed, The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2.High speed with large quantity punches, double press rollers, suitable for mass production.
3.Equip with force feeder, improve granules flow-ability and filling performance, ensure the filling precision. It solves the problem of insufficient gravity feeding of ordinary tablet press, excessive dust and cross contamination of the workbench.
4.Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
5.The pressure is large and the pre-pressure is continuously adjustable, which prolongs the pressing time.
6.Gap type micro-flow automatic lubrication system, automatic lubrication of the upper and lower rails and punch tips, reducing the upper and lower rails and punch wear.
7.Progressive grease lubrication system ensures grease lubrication, clean, convenient and reliable.
8.It is equipped with a sensor pressure protection device to protect the punch tip from automatically stopping when the pressure is overpressured.
9. with a variety of security devices.
10. Special oil-proof and dust-proof system, avoids plugging and increases the damping structure.
11. PLC and man-machine interface control, the operation is intuitive and simple.
2.High speed with large quantity punches, double press rollers, suitable for mass production.
3.Equip with force feeder, improve granules flow-ability and filling performance, ensure the filling precision. It solves the problem of insufficient gravity feeding of ordinary tablet press, excessive dust and cross contamination of the workbench.
4.Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
5.The pressure is large and the pre-pressure is continuously adjustable, which prolongs the pressing time.
6.Gap type micro-flow automatic lubrication system, automatic lubrication of the upper and lower rails and punch tips, reducing the upper and lower rails and punch wear.
7.Progressive grease lubrication system ensures grease lubrication, clean, convenient and reliable.
8.It is equipped with a sensor pressure protection device to protect the punch tip from automatically stopping when the pressure is overpressured.
9. with a variety of security devices.
10. Special oil-proof and dust-proof system, avoids plugging and increases the damping structure.
11. PLC and man-machine interface control, the operation is intuitive and simple.
Technical Parameters
|
Model
|
GZP-35
|
GZP-43
|
GZP-55
|
GZP-57
|
|
|
Number of Stations
|
35
|
43
|
55
|
57
|
|
|
Tooling Standard
|
D
|
B
|
BB
|
BBS
|
|
|
Max Main Pressure (KN)
|
100
|
||||
|
Max Pre-pressure (KN)
|
20
|
||||
|
Max Tablet Diamete(mm)
|
round tablet
|
25
|
18
|
13
|
11
|
|
irregulartablet
|
25
|
19
|
16
|
13
|
|
|
Max Filling Depth (mm)
|
20
|
18
|
15
|
15
|
|
|
Max Tablet Thickness (mm)
|
8
|
7
|
6
|
6
|
|
|
Max Turret Speed (r/min)
|
60
|
||||
|
Max Production Capacity(pcs/h)
|
252000
|
309600
|
396000
|
410400
|
|
|
Motor Power (kw)
|
11
|
7.5
|
|||
|
Overall Size (mm)
|
1370×1170×1800
|
||||
|
Machine Weight (kg)
|
3200
|
||||
