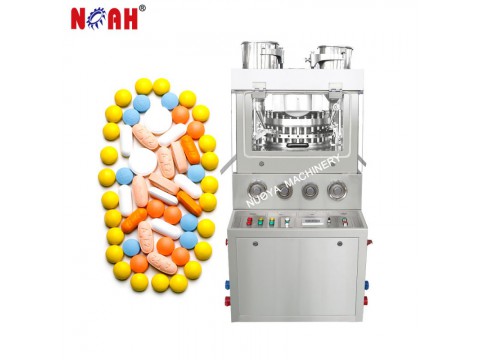

Click image to view original image
Applications:
The ZP27 Automatic tablet press machine is double-press type, continuous automatic tablet press machine. It is designed to press thick tablet. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristics:
·The outside of machine is fully-enclosed and made of stainless steel. The turret is disposed to prevent cross pollution.
·It has transparent windows and processing can be observed clearly. The window can be opened. It is easy to clean and maintain.
·All the controllers and the operation unit is located reasonably.
·The turret speed can be adjusted.
·One overload protection unit is installed to avoid damage of punches and other parts. When overload occurs, the machine stops automatically.
Main technical specification:
|
Model
|
ZP27A (large tablets)
|
ZP27B(thick tablets)
|
|
Dies
|
27 sets
|
27 sets
|
|
Max Pressure
|
100 KN
|
100 KN
|
|
Max Dia of Tablet
|
30 mm
|
30 mm
|
|
Max Depth of Filling
|
16 mm
|
32 mm
|
|
Max Thickness of Tablet
|
7 mm
|
16 mm
|
|
Max production
|
116,640 pcs/h
|
116,640 pcs/h
|
|
Motor
|
5.5KW, 380V/50Hz
|
5.5KW, 380V/50Hz
|
|
Overall Size
|
1240*980*1850 mm
|
1240*980*1850 mm
|
|
Net Weight
|
2050KG
|
2050KG
|
