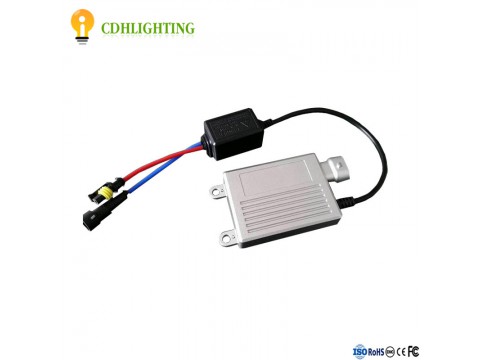

Car headlight OEM CDH-933 12V 55W Slim HID Xenon Ballast

1)Dimension

2)N.W

350±20g

3)Power

55±2W

4)Input voltage range

9~16V

5)Rated voltage

12.5V

6)Start Current

4.5A

7)Hot light up current

4.5A

8)Max. start voltage

23kV

9)Working Current

4.5A

10)Working temperature

-40~ 105°C

11)Lifetime

50,000H

12)Holder's N.W

14G

13)Scope of application

98% Cars

14)Defect Rate

Less than 1%

1)Over / low-current protection

2)Voltage output overload / low protection

3)Thunder resistance

4)High safety

5)Short-circuit protection: Auto protect 0.5 second after short-circuit

6)Open protection: Auto protect 0.5 second after open-circuit

7)High voltage protection :more than 16.5V close，less than 16V open

8)Low voltage protection:less then 6.5V close ，more than 8.5V open

9)Reverse Protection:Auto Protect in 1second after Reverse connection

1) 2-3hours continuous working aging test.

2) Connection circuit protection test.

3) Lack of voltage protection test.

4) Over voltage protection test.

5) Flash light concussion test.

6) Quakeproof capability test.

7) Cold & warm boot test.

8)Polarity protection test.

9)Short-Circuit protection test.
