Introduction

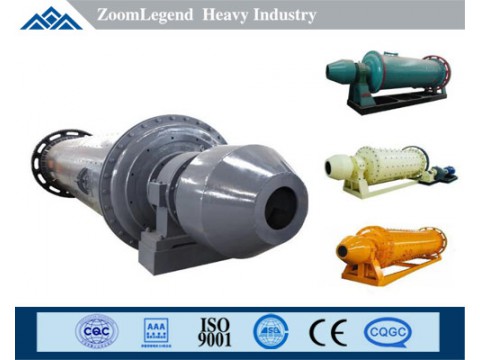

Grinding Ball Mill is the key equipment for smash the materials after they are primarily crushed. Ball Mill is generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. Ball Milll is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.
Structure
Grinding Ball Mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control.The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This machine has stable operation and reliable performance.
Working Principle
Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.
Technical Parameter
|
Model |
Rotary Speed (r/min) |
Ball Load（t） |
Feed Size (mm) |
Discharge Size (mm) |
Output (t/h) |
Power (kw) |
Weight (t) |
|
Φ900×1800 |
36-38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
|
Φ900×3000 |
36 |
2.7 |
≤20 |
0.075-0.8 |
1.1-3.5 |
22 |
5.6 |
|
Φ1200×2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Φ1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Φ1200×4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Φ1500×3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
|
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Φ1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
|
Φ1830×3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
|
Φ1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
|
Φ1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
|
Φ1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
|
Φ2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
34 |
|
Φ2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
42 |
|
Φ2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
50 |
|
Φ2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
|
Φ2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
|
Φ2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
|
Φ2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
56 |
|
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Φ2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Φ2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
94 |
|
Φ2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
15-145 |
430 |
102 |
