- Brand Name:FosterLaser
- Place of Origin:China
- :
Description

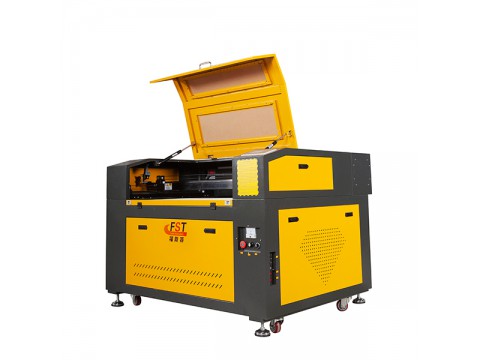

FST-9060 Laser Cutting Machine
Model: FST-6090
Laser Tube: Sealed CO₂ glass laser tube
Eneraving area: 600*900mm
Laser Power: 60W/80W/100W
Engraving Speed: 500mm/s Max
Engraving Depth: 5mm
Parameter:
| Model | FST-6090 |
| Worktable | Honeycomb |
| Laser Tube | Sealed CO₂ glass laser tube |
| Eneraving area | 600*900mm |
| Laser Power | 60W/80W/100W |
| Engraving Speed | 500mm/s Max |
| Engraving Depth | 5mm |
| Cutting Speed | 60mm/s |
| Cutting Depth (Acrylic) | 0-15mm (acrylic) |
| Up and down work table | Ec Up and down 300mm adjustable |
| Minimum Shaping Character | 1 X 1mm |
| Resolution Ratio | 0.0254mm (1000dpi) |
| Power Supply | 220V(or110V)+/-10% 50Hz |
| Resetting Positioning | Accuracy less than or equal to 0.01mm |
| Water protecting sensor and alarm | Yes |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 35-70℃ |
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
| Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
| Software | Moshi/Laserdraw |
| Engraving on Curve Surfaces(Yes/No) | No |
| Control Configuration | DSP |
| Water Cooling(Yes/No) | Yes |
| Maximum Height Of Materials To Engrave(mm) | 120mm |
