Waste plastic pyrolysis plant

The environmental pollution caused by plastic waste has been widely concerned by the world. Whereas waste plastic pyrolysis plant can provide an opportunity to collect and process plastic waste in the most environmentally friendly way. Moreover, during this processing, plastic waste can be converted into fuel oil and carbon black which can be used in many industrial fields. After years of research and development, Doing Group has mastered the advanced pyrolysis technology and designed environmentally friendly and efficient waste plastic pyrolysis plant.

The operation of Doing waste plastic pyrolysis plant:

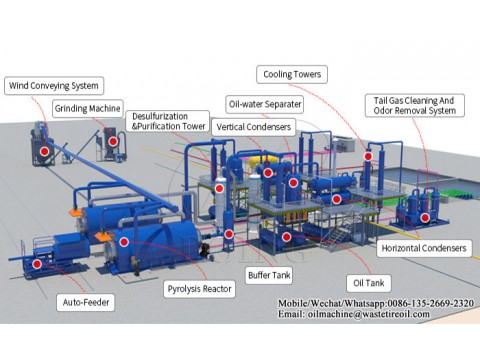

Doing waste plastic pyrolysis plant operation

First, put waste plastic into the pyrolysis reactor through auto-feeder, close in-let and heat the pyrolysis reactor. When the temperature reaches 160 degrees Celsius, waste plastic will be evaporated into oil gas. The highest yield is achieved when the temperature rises to 200 degrees Celsius to 300 degrees Celsius. Then oil gas will enter the condensing system and liquefy into heavy oil, which will be collected in the oil tank. And the gas that cannot be liquefied will be recycled to the furnace chamber to assist in heating the pyrolysis reactor. The flue gas generated from heating can be discharged to the air after the purification system to meet the environmental requirements. At last, after the pyrolysis reaction is finished, stop heating the pyrolysis reactor, and then carbon black can be discharged when the temperature of the pyrolysis reactor is lowered to about 50 degrees Celsius.
