Tyre pyrolysis oil to diesel distillation plant is used to convert waste tyre pyrolysis oil, waste plastic pyrolysis oil, waste engine oil and waste lubricating oil into non-standard diesel oil and asphalt through distillation technology.
Tyre pyrolysis oil to diesel distillation plant is used to convert waste tyre pyrolysis oil, waste plastic pyrolysis oil, waste engine oil and waste lubricating oil into non-standard diesel oil and asphalt through distillation/refining technology. DOING tyre pyrolysis oil to diesel distillation plant including vertical distillation reactor, condensers, oil tanks, water seal device, catalytic reactors, boiler, conduction oil tank, dedusting system, chimney, control cabinet.etc. It can convert tyre pyrolysis oil (or other waste oil) into diesel oil without any pollution, which can pass the environmental impact assessment easily.

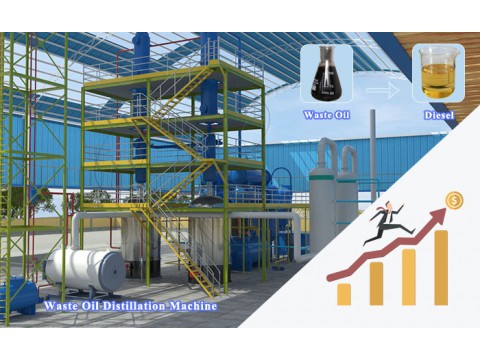

Tyre pyrolysis oil to diesel distillation plant
The process of tyre pyrolysis oil to diesel distillation plant
The workflow chart of tyre pyrolysis oil to diesel distillation plant
1. Pump tyre pyrolysis oil (or other waste oil) into the vertical reactor of the tyre pyrolysis oil to diesel distillation plant.
2. Heat the vertical reactor of tyre pyrolysis oil to diesel distillation plant with heat conduction oil heating together with the bottom fuel heating. When reaching a certain temperature, the oil gas will be vaporized out and separated from the impurities.
3. The oil gas will be cooled into liquid oil by the condensers, and the liquid oil will be collected into the distillate storage tank.
4. The non-condensing oil gas after passing the distillate tank and water seal device will be recycled to heat the reactor of tyre pyrolysis oil to diesel distillation plant.
5. Adding clay into the liquid oil can make the color of oil more bright and transparent. After filtering, the qualified diesel oil will be collected into the oil tank.
6. Collect the asphalt from the vertical reactor.
The advantages of tyre pyrolysis oil to diesel distillation plant
1. The high-speed heating technology can make the distillation process more efficient, shorter in time and less in fuel.
2. The design of vertical reactor can realize asphalt automatic discharging, which is convenient and quick.
3. The circulating water cooling system consumes almost no water.
4. The diesel oil cleaning system will enable you to get high-quality diesel oil.
5. The efficiency is high, and the diesel oil yield is as high as 90%.
6. Figured with exhaust gas treatment equipment, the whole process of tyre pyrolysis oil to diesel distillation plant is environmentally friendly, and there is no waste pollution.
