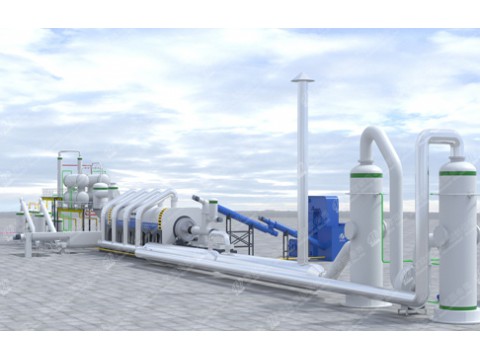

The advantages of the 2018 new design fully continuous waste plastic pyrolysis plant :
1) Adapt to external rotation and
uniformly heat the reactor 360°. No part of the reactor is heated for a
long time, in this way, our reactor has a longer service life.
Internal heat transfer diagram of the reactor
2) Spiral blade design Inside the reactor, the raw material is run
along the inner wall of the reactor. The raw material moves evenly
inside the reactor, directly contacts the heat transfer surface, and
immediately receives heat. The heat exchange is rapidly and evenly
distributed, and the pyrolysis process is greatly improved.Schematic
diagram of the dispersion of raw materials inside the reactor.
3) The reactor and feeder adopts frequency conversion explosion-proof
motor, which can adjust the residence time of raw materials in the
reactor according to the pyrolysis conditions of the raw materials in
the reactor, so as to achieve the purpose of adjusting the processing
amount and the pyrolysis state, so that the raw materials meet the
requirements. In the case of a treatment amount, it is sufficiently
decomposed to increase the oil yield.
4) Our reactor can be fed by steel wire free tire rubber particles and
steel wire tire rubber particles. The carbon black can also be separated
from the steel wire when the carbon black is discharged. If the raw
material does not contain steel wire, the reactor can increase the
processing capacity by 10%. In the process of discharging carbon black,
the steel wire and carbon black can be cooled and can be directly
collected and saved. Cooling time, improve production efficiency.
5) While using the burner as a heat source, our reactor recycles the
non-condensable combustible gas generated by tire pyrolysis and passes
the exhaust gas burner as the second heat source of the reactor to
achieve "self-sufficiency" and save fuel consumption. Will reduce
production costs and increase customer revenue. In addition, the flue
gas after combustion of the exhaust gas is effectively treated to meet
the environmental standards for flue gas emissions.
Now, the country has issued relevant policies to support recycling of
waste tires, which is enough to indicate that the large-scale waste tire
batch processing industry will be a huge potential market in the
future. Therefore, investing in 2018 new design fully continuous waste
plastic pyrolysis plant now is the best investment opportunity for you
to seize market share in the future!
