Advanced Waste Oil Distillation Plant for Sale

Waste oil distillation plant can refine waste oil into diesel, which is a better fuel oil and has a better market value. It mainly consists of control cabinet, heat transfer oil system, vertical reactor, vertical and horizontal condensers, oil tanks, water seal device, decolorization & deodorization tower, etc. Recently, Doing Group has developed an advanced waste oil distillation plant with a high oil yield of about 90%.

The work principle of Doing advanced waste oil distillation plant

Doing advanced waste oil distillation plant uses distillation technology, which is a process that uses selective boiling and condensation to separate the components or substances from a liquid mixture. Light diesel can be extracted from the waste oil mixture by distillation, which is a common method for separating and purifying waste oil in chemical plants.

1.Pyrolysis oil obtained from waste plastics, waste tires, waste rubber, etc.

2.Waste oil, such as waste engine oil, waste lubricating oil, waste oil residue ,waste motor oil, waste diesel and so on.

The work process of Doing advanced waste oil distillation plant

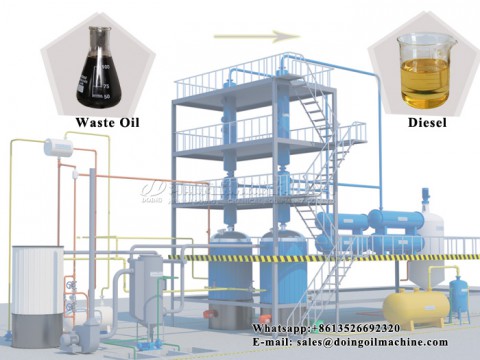

waste motor oil to diesel distillation plantThe workflow of Doing advanced waste oil distillation plant

First, introduce waste oil into the distillation reactor by a oil pump. And then fill the heat transfer oil with the whole heating system.

Then, the waste oil is heated internally with heat transfer oil and at the bottom with fuel such as coal, wood, gas, oil, etc. This double heating method can quickly heat the waste oil and shorten the operation time of the project.

Soon, the waste oil starts to boil and evaporate, the vapor then passes through the catalyst tower to remove impurities and the condensing tower to be condensed into a liquid, while some of the hydrocarbons with shorter lengths continue to exist as a gas.

Then, the cooled liquid oil, i.e. diesel, is introduced into the oil tank. The non-condensable gas is used to assist in heating the distillation reactor.

Then, when the distillation process is finished, there is some residue in the reactor, i.e. asphalt. Because Doing advanced waste oil distillation plant uses a vertical reactor, the asphalt can be easily discharged.

Finally, the flue gas produced by heating reactor can be purified by the desulfurization and purification system to meet the standard of environmental requirements and be discharged into the air.

What’s more, if you want to further purify this diesel fuel, you can add a deep purification system with an acid-base purification device and a pressure filtration system. The diesel fuel produced directly by the standard distillation system is brownish yellow in color. After further purification by the deep purification system, the diesel fuel obtained is light yellow in color.
