Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

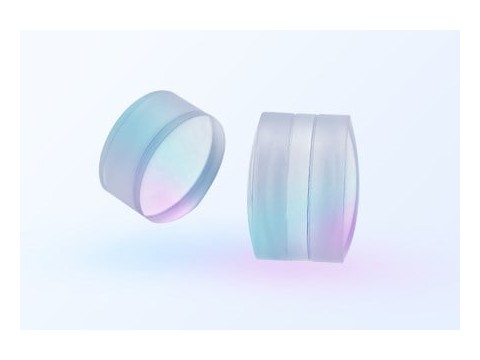

Triple achromatic lens is composed of a piece of low refractive index coronal glass and two pieces of high refractive index flint glass. It is usually used to eliminate the axial chromatic aberration of the spherical surface. It is usually used in projection system, imaging system, laser measurement system, etc.
Triple achromatic lens has infinite conjugate ratio, which is very suitable for focusing and imaging amplification of collimated beams. Achromatic triple glued lens achromatic triple glued lens is the simplest lens used to correct all primary aberrations. These three glued lenses are made by gluing a low refractive index lens between two high refractive index lenses, which can minimize the color difference and have excellent on-axis and off-axis
Technical parameters:
Material: k9, quartz
Radius of curvature: ± 10mm - ± 50000mm ± 1%
Outer circle: 10mm-200mm ± 0.1mm
Center thickness tolerance: ± 0.1mm
Center deviation: 3′(we can process to 30 ″with high precision)
Surface accuracy: λ/4 — 2λ
Surface quality: 60/40
Effective caliber: ≥80%
Coating: coating can be carried out according to customer requirements
In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co.,Ltd "to know about more details.
