Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

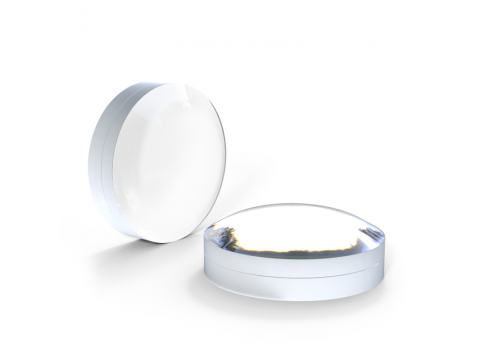

Achromatic lens is used to correct color, which can greatly reduce color difference and spherical aberration. Achromatic lens is used in optical detection, optical imaging and other related fields. Compared with a monolithic lens, achromatic lens can form smaller light spots. Borisun optics provides achromatic lenses coated with a variety of antireflective films. Antireflective film options include vis, NIR, and SWIR.
Technical parameters:
Material: k9, quartz
Radius of curvature: ± 10mm - ± 50000mm ± 1%
Outer circle: 10mm-200mm ± 0.1mm
Center thickness tolerance: ± 0.1mm
Center deviation: 3′(we can process to 30 ″with high precision)
Surface accuracy: λ/4 — 2λ
Surface quality: 60/40
Effective caliber: ≥80%
Coating: coating can be carried out according to customer requirements
In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co.,Ltd "to know about more details.
