Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

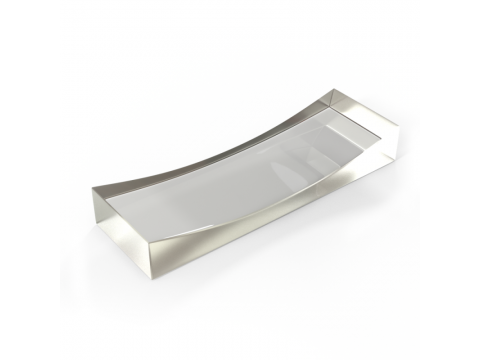

Biconcave cylindrical lens is mainly used to change the design requirements of imaging size. For example, convert a point spot into a line spot, or change the height of the image without changing the image width. It can be used in linear detector lighting, bar code scanning, holographic lighting, optical information processing, computer and laser emission. Optical double concave cylindrical mirror is also widely used in high-power laser system and synchrotron radiation beam line. At the same time, the requirements for cylindrical mirror parts are becoming higher and higher, especially in high-precision testing instruments and devices such as cavity plate of high-power laser resonator and long-distance off-line interferometer.
Technical parameters:
Material: optical glass, H-K9L (N-BK7), UV fused quartz
Radius of curvature: ± 1mm - ± 50000mm ± 1%
Outer circle: 3mm-500mm ± 0.1mm
Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation: 3′(we can process to 30 ″with high precision)
Surface accuracy: λ/ 4 (high precision, we can process to 1 / 10λ)
Surface quality: 40/20 (we can process to 10-5 with high precision)
Effective caliber: ≥90%
Coating: Customized according to your requirements
In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co.,Ltd "to know about more details.
