Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

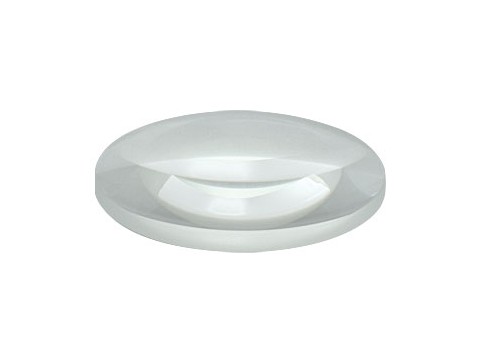

K9 plano convex spherical lens can see the transmittance of near infrared (350-2000nm).
H-K9L (N-BK7) is an optical glass commonly used in the preparation of optical elements.
The collimated beam can converge on the rear focus, or the point light source can be changed into a collimated beam.
Plano convex lenses are ideal for focusing parallel rays at one point. These lenses can be used in a variety of applications. They have proven focal lengths and have near optimal shapes for infinite and finite conjugate applications. The plano convex lens can focus the collimated beam on the back focus, or turn the point light source into a collimated beam
Technical parameters:
Material: optical glass, H-K9L (N-BK7)
Radius of curvature: ± 1mm - ± 50000mm ± 1%
Outer circle: 3mm-500mm ± 0.1mm
Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation: 3′(we can process to 30 ″with high precision)
Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)
Surface usuality: 60/40 (we can process to 10-5 with high precision)
Effective caliber: ≥90%
Coating: multilayer antireflective film
A:350-650nm
B:650-1050nm
C:1050-1580nm
In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co.,Ltd "to know about more details.
