【 Product Introduction 】

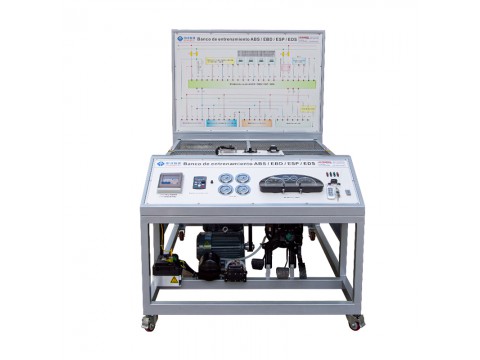

The equipment is based on the ABS/ESP body electronic stability system of Volkswagen original car, which can simulate the working state of ABS/ESP system in the running process of the car, easy to operate, safe and reliable. It is suitable for the teaching needs of ABS/ESP body electronic stability system and maintenance training in middle and higher vocational and technical colleges, general education colleges and training institutions.
【 Main configuration 】
Original vehicle ABS/ESP body electronic stability system, original vehicle ABS/ESP body electronic stability system computer, combination instrument, ABS/ESP body electronic stability system operation of all related original vehicle accessories, fault setting and troubleshooting system, original vehicle circuit schematic and detection terminal, diagnosis seat, governor, movable bench, universal caster with lock, etc.
[Product Features]
1. The measuring panel of the training platform is painted with color inkjet circuit diagram, which is made of high strength acrylic sheet with 8mm thickness inkjet. It is resistant to large temperature difference, wear-resistant, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright color, not easy to fade and so on.
2. The operating panel of the training platform is equipped with automobile instrument and pressure gauge, which can display the change of speed, brake pressure and other parameters in real time. A diagnostic seat is installed, which can be connected to a special or general vehicle decoder to carry out self-diagnosis functions such as reading fault codes, clearing fault codes and reading data streams for ABS/ESP body electronic stability system.
3. Detection terminals are installed on the panel of the training platform, which can directly detect the electrical signals of each sensor, actuator and ABS/ESP body electronic stability control unit pin on the panel, such as resistance, voltage, current and frequency signals.
4, the training platform is made of steel frame structure seamless welding, the metal surface is treated by high temperature spray, the paint is strong, with bright color, scratch resistance, corrosion resistance, long life and other characteristics, the platform with self-locking caster device, flexible movement, safe and reliable, strong and durable.
【 Technical parameters 】
1. Overall size: 1500×1000×1800mm(length × width × height)
2. Power supply: three-phase four-wire (three-phase five-wire 380V±10% 50Hz)
3. Input power; Ac 220V±10% 50Hz
4. Working power supply; Dc 12V
