Automatic Mini Type Home Textile Machine

Click image to view original image
Brand: Bealead
型号: 101B
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 20 days since the date of payment
Address: China
Valid until: 2034-01-13
Updated on: 2017-02-09 16:53
Hits: 61729
Enquiry
Company Detail


Details

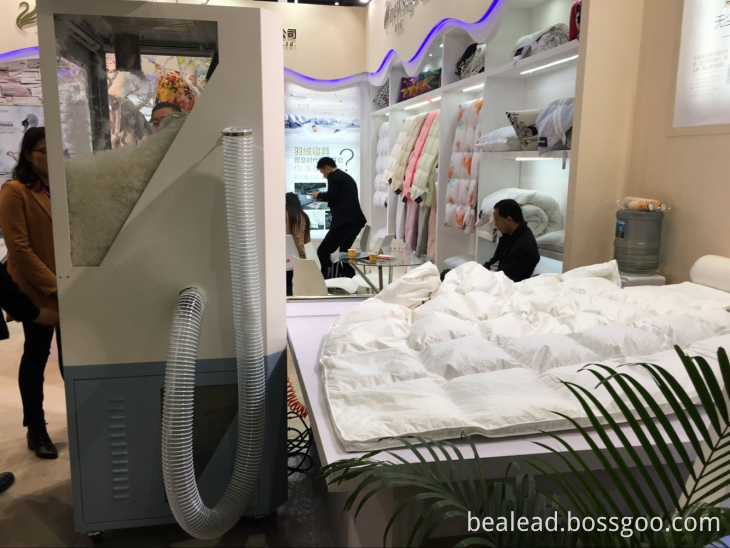

The occupied area of this mini machine is small, the closed down-filling space can make sure a dust-free environment. This duvet filling machine is simply oprerated, the customers can fill down by themselves, the self-help experiences are full of funny.

Details:

Brand: Bealead

Model: 101B

Composed by: 1 feeding unit

Filling Pipes: 1

Scales by filling pipe: 1

Fillings by hour: 6 duvets

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 300kg

Filling Storage: 1.5kg

Weighing Range: 1g- 40g

Accuracy: 0.1g

Feeding Unit Size: 0.8* 0.8* 2m

Overall Size: 1.5* 0.86* 2.15m

Min. Site Area: 1.5m* 0.9m

Main Specification

Voltage 220V Air Tank ≥0.3m³
Air Pressure 0.6- 0.8MPa Air Compressor Power 4KW
Min. Air Pressure 0.5MPa Air Compressor Exhaust ≥0.5m³/min
Max. Power 1.6KW Air Monitoring System      -
PPR Pipe 1 inch Down Returning System
Pipe Distance ≤20m Humidity Control System      -



 Mini Filling Machine

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

 Our Factory

Automatic Machinery company

Exhibitions

Automatic Filling Machine

CE Certificate

Filling Machine CE
