Equipment Needed
| Items |
Category |
Equipment Name |
Model |
Quantity |
|
1 |
Blow molding Machine |
HY-1 |
0.05~1.5L |
1 |
|
2 |
Controlling System |
PLC Type |
/ |
1 |
|
3 |
Furnace |
Preform Furnace |
72 heads, Infrared, Rotary |
1 |
|
4 |
Air Compressor |
Air Compressor (L) |
0.7 m3 / 25Kg |
1 |
|
5 |
Air Supplying Accessories |
Air Filter |
30kg |
1 |
|
Air Hose |
30kg |
1 |
||
|
6 |
Air Dryer |
1.0 m3 / 30Kg |
0 |
|
|
7 |
Chiller |
3HP |
0 |
|
|
8 |
Mold |
2-cavity |
500ml |
1 |
|
600ml |
0 |
|||
|
1000ml |
0 |
|||
|
9 |
Package |
Export Use |
Wooden Cases |
2 |
Delivery
30 days after confirmation on bottle mold design and deposit being paid.
Payment Terms
30% pre-paid deposit by T/T, 70% balanced before shipment.
Warranty
1 year. We prepare free spare parts attached to every machine. Non-profit spare parts will be
sent door-to-door by air mail in case of any broken parts during warranty period.

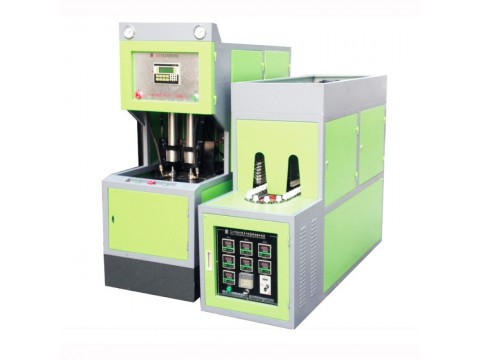

HY-1 Blow Molding Machine
|
Category |
Items |
Unit |
HY-1 Blow molding machine |
|
Final Product |
Material |
/ |
PET |
|
Volume |
L |
0.05-1.5 (2-cavity) |
|
|
Theoretical Capacity |
PCS/h |
0.05-1.5L: 700-1000 |
|
|
Max Height |
mm |
360 |
|
|
Max Diameter |
mm |
100 |
|
|
Mold Plate Dimension |
Max Plate Area |
mm 2 |
420410 |
|
Mold Thickness |
mm |
80-180 |
|
|
Clamping Force |
KN |
120 |
|
|
Opening Stroke (adjustable) |
mm |
130 |
|
|
Main Body |
Dimension |
M |
1.65x0.7x1.60(each blower) |
|
Weight |
T |
0.45(each blower) |
Technical Specifications of Preform Furnace – 72 bases
|
Category |
Items |
Unit |
72 bases |
|
Mainframe Electric Power |
Power |
KW |
13.8 |
|
Voltage/Frequency (Three Phase) |
V/Hz |
220/380/50-60 |
|
|
Oven Dimension (L×W×H) |
M |
1.75x0.65x1.45 |
|
|
Oven Weight |
T |
0.20 |
Free attached spare parts：
|
Items |
Quantity |
Note |
|
|
1 |
Digital instrument |
1 |
Except computer type |
|
2 |
Mold Clamping Cylinder seal ring |
1 set |
|
|
3 |
Sealing, Stretching Cylinder seal ring |
1set |
|
|
4 |
Mould-adjustment wrench |
1 |
|
|
5 |
Furnace temperature gauge |
1 |
|
|
6 |
Furnace heating tube |
5 |
|
|
7 |
Instruction book |
1 |
