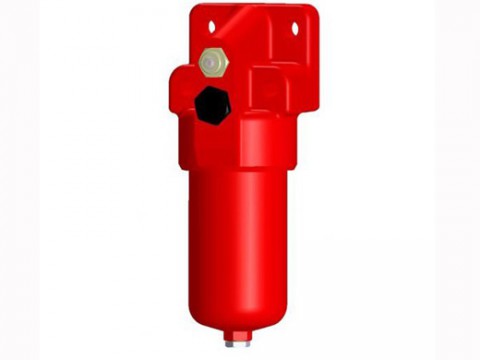

DFB PRESSURE FILTER FOR PLATEF ConNECTION SERIES DFB-H30*C
DFB-H3010C-DFB series pressure filter
DFB series filter is of high pressure type, and used in the pressure line of hydraulic system. It can remove all the
contaminants from the hydraulic system. The element of this series is made of glass fiber., it has high efficiency and
filtration, large dirt capacity and low initial pressure drop. Bate ratio is over 200.
It has two protection and equipment which are by-pass valve and contamination indicator. The indicator will act
when the pressure drop across element attains adjustable pressure. The element should be cleaned or changed in
time
Model code
Technical data table
NOTE:* is filtration accuracy,if the fluid is water-glycol ,usage pressure 32PMPA,flow rate 160L/min,filtration accuracy 10 um and with
CS-III Indicator,The model of the filter is DFB.BH-16010C,The model of element is DF0060D010BN3HC
