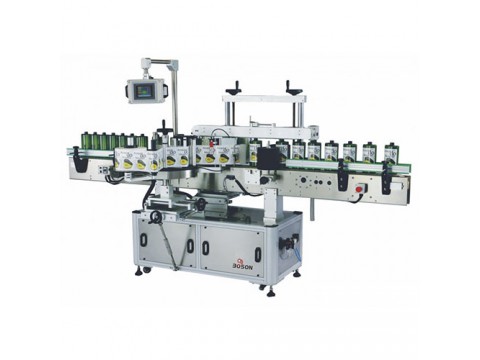

Automatic Two Side Labeling Machine

Click image to view original image
Brand: Boson
Price: 20000.00USD/set
Min.Order: 1 set
Supply
Delivery: Shipment within 15 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-07-09 14:24
Hits: 53347
Enquiry
Company Detail


Details
Applications for


2 , This machine suit for one side or double sided labeling,front ,back and neck labels of the square bottle,flat bottle and round bottles


3 , Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)


4 , Using 82.6 mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle,round bottle,square bottle and some irregular bottles


5 , Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment


6 , Ribbon date printer and injek printer for options


7 , Labeling all kinds of bottles ,only need to adjust machine



Technical Parameters


Production speed 45m/min
Labeling accuracy ±1mm
Label max width 190mm
Bottle diameter 30-100mm
Label inner diameter 76.2mm
Label outer diameter Max330mm
Outline size L2000×W700×1400mm
Air source 4-6KG 30L/MIn
Using power 220V 50HZ 1200W
