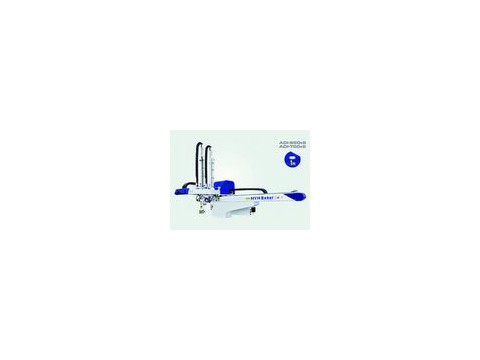

A-series sidle manipulator series is mainly used in the 50-200T horizontal injection molding machine finished out, stop using single arm, can increase the jib for three die head out with transverse variable frequency motor (the main arm for AC servo motor startup), two AC servo motor driven, drawing drive on, under pressure, the stroke adjustment and position adjustment mode with manual adjustment (standard) and electric adjustment (optional) two, equipped with standard and holding fixture
Specifications
| Model | ARH650DI/DW | ARH750DI/DW | ARH850DI/DW | ARH950DW |
| Recommended IMM(Ton) | 80~200 | 150~250 | 200~300 | 250~350 |
| Traverse Stroke(mm) | 1220 | 1220 | 1460 | 1460 |
| Vertical Stroke(mm) | 650 | 750 | 850 | 950 |
| Crosswise Stroke(mm) | M:200 S:120 | M:250 S:120 | ||
| Traverse Driven | AC Servo Motor/Inverter Motor | |||
| Take out Time(sec) | 1.2 | 1.3 | 1.4 | 1.5 |
| Dry Cycle Time(sec) | 8 | 9 | 10 | 11 |
| Power(Kw) | 0.5(single phase AC 220V 50/60HZ) | |||
| Working Pressure(kg/cm2) | 5±Kg/cm2 | |||
| Air Consumption(NI/CYCLE) | 20 | 22 | 24 | 24 |
| Max. Load(kg) | 3 | 3 | 3 | 4 |
| Net Weight(kg) | 180/200 | 190/210 | 200/220 | 230 |
Main Features
1) Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4) Low noise, save energy, no pollution, long use life.
