Samway P32DC 12/24V DC For Mobile Van or Truck

Samway P32DC 12/24V DC For Mobile Van or Truck
Feature description:
● 2" 4SP Hydraulic Hose
● Compact & Robust Design
● Optional Quick Change Tool & Die Rack
● TUV CE Approved

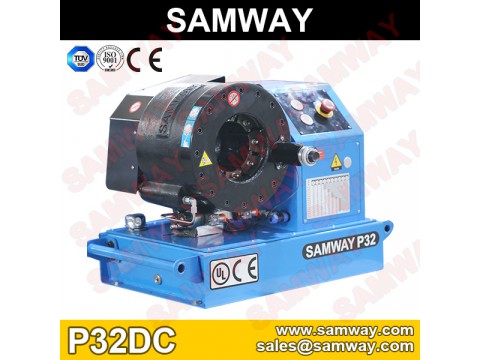

Samway P32DC is a full capacity 2" 4SP Hydraulic Hose Crimping Machine Compact and
Robust in Design, Samway P32DC bring the workshop 3 phase crimper to the limited
mobile van, makes the mobile service a production centre powerful and productive as
in the workshop. Optional Die Rack Quick change tool foot pedal make the crimping
even more productive and easy. Standard electrical control with buttons version is also available upon request.
Specification:
Main Specification
SAMWAY P32DC
Max Hydraulic Hose
2" 4SP
Crimping Range mm
4-87
Die Type
P32
Master Die Length mm
80
Max Opening  mm
+32
Motor KW
3KW 12V/24V DC
Crimping Force  KN
2200
Crimpings Per Hour
1200
Control
Micro Control
Foot pedal
Optional
Die Rack
Optional
Quick Change Tool
Optional
Backstop Device
Optional
Control by Pressure
Optional
Noise Level  dBA
65
Protection Class
IP56
L*W*H  mm 580*400*550
Weight  KG
220
Standard Die Sets Included:
Die No.
10* 12* 14 16 19 22 26 30 34 39 45 51 57 63 69 74* 78*
Length
55 55 55 55 55 55 75 75 90 90 90 90 90 100 100 100 100
* Optional Die Sets Upon Request
