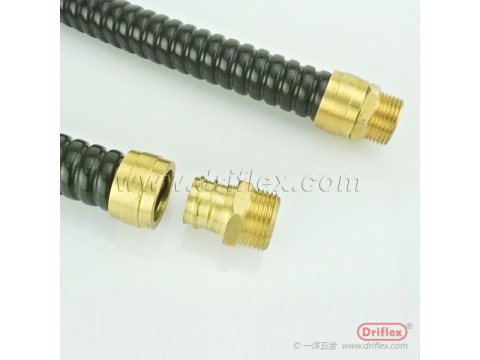

Click image to view original image
Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, shell cover.
Material:
•Connector body - Nickel Plated Brass
•Shell cover - Nickel Plated Brass
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
|
Part No |
ISO Thread (mm) |
PG Thread |
Box |
|
VJC-B09 |
16 |
PG9 |
25 |
|
VJC-B10 |
16 |
PG11 |
25 |
|
VJC-B11 |
20 |
PG16 |
25 |
|
VJC-B12 |
25 |
PG21 |
25 |
|
VJC-B13 |
32 |
PG29 |
15 |
Suitable flexible conduits:
•VJ type of vacuum jacketed flexible conduit
