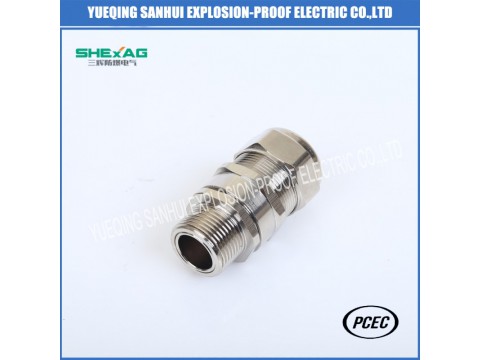

BDM-22 Explosion-proof type cable glands IP68 for armored cable
Product Features
It is widely used clamping and tightening the cable in the hazardous locations of oil exploitation,oil refining,chemical industry and military and so on.It is applicable to explosive gas environment zone1 and zone2.It is applicable to explosive dust atmosphere district 20,21 and 22.It is suitable for IIA,IIB,IIC explosive gas environment.
Outline dimension
Execution standard:GB3836.1,GB3636.3
Explosion proof mark: Exd IIC Gb/Exe II G/Ex tD A21 IP68
Thread:Metric is standard,if there is special requirement,such as G,NPT thread,please specify When ordering.
Product materials:304SS,316L,H62
|
|
(Φ)Suitable cable diameter |
Thread length |
Length |
|
h(mm) Armored layer thickness range | ||||
| ()Armored cable diameter (outlet) | () Outer cable diameter (inlet) | ()Cable diameter Optional (inlet) | |||||||
| M20*1.5A |
|
NPT1/2"A | <10.5 | 5.5-12 | -- | 15 | 66 |
|
0.3-1.0 |
| M20*1.5B |
|
NPT1/2"B | <10.5 | 9.5-16 | -- | 15 | 66 |
|
0.3-1.0 |
| M20*1.5C |
|
NPT1/2"C | <14.5 | 12.5-20.5 | 6-12 | 15 | 68 |
|
0.3-1.0 |
| M25*1.5B |
|
NPT3/4"B | <14.5 | 12.5-20.5 | 9-15 | 15 | 68 |
|
0.3-1.0 |
| M25*1.5C |
|
NPT3/4"C | <16.5 | 17-26 | 9-15 | 15 | 73 |
|
0.4-1.2 |
| M32*1.5B |
|
NPT1"B | <19.5 | 17-26 | 14-22 | 19 | 77 |
|
0.4-1.2 |
| M32*1.5C |
|
NPT1"C | <22.5 | 22-33 | 14-22 | 19 | 81 |
|
0.4-1.4 |
| M40*1.5B |
|
NPT1 1/4"B | <25.5 | 22-33 | 19-28 | 19 | 81 |
|
0.6-1.9 |
| M40*1.5C |
|
NPT1 1/4"C | <29 | 28-41 | 24-33 | 19 | 88 |
|
0.6-2.2 |
| M50*1.5B |
|
NPT1 1/2"B | <31 | 28-41 | 29-41 | 19 | 88 |
|
0.8-2.3 |
| M50*1.5C |
|
NPT1 1/2"C | <37 | 36-52.5 | 29-41 | 19 | 96 |
|
0.8-2.3 |
|
|
|
|
|
|
|
|
|
|
|
