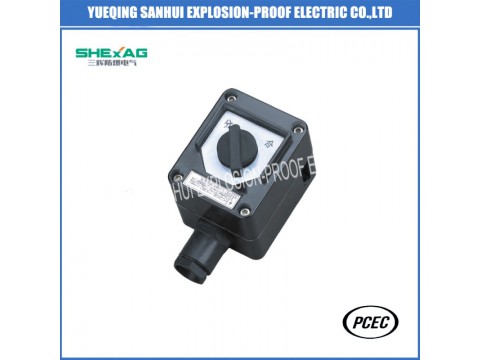

Click image to view original image
Applications
1.Hazardous:division 1&2 or zone 20,21,22
2.Explosive gas atmosphere:II A,II B,II C or flammable dust atmosphere
3.Serious erosive gas environment
4.Indoor and outdoor(IP55,IP65)
Features
1.The enclosure is moulded by fibre glass polyester resin with properties of impact-resistance,erosion-proof and perfect thermal stability,fine outline,enclosure can also be CS or SS,argon protected precision welding.
2.Increased safety enclosure and built-in flame-proof components.
3.With explosion erosion dust and waterproof functions.
Main technical parameters
|
Rated current (A) |
Rated voltage (V) |
Ex-mark |
Erosion-proof class |
Degree of protection |
Inlet thread (G) |
Cable outer dia. (mm) |
|
10,16 |
220 |
Exde II CT6 DIP A20 TA,T6 |
WF2 |
IP55,IP65 |
G3/4 |
Ф10~Ф14 |
|
M25*1.5 |
Ф9~Ф13 |
Noted:Indicate it when ordering.
Outline & installation dimensions
For more information ,welcome to contact with us or check our website:www.exproofcablegland.com
