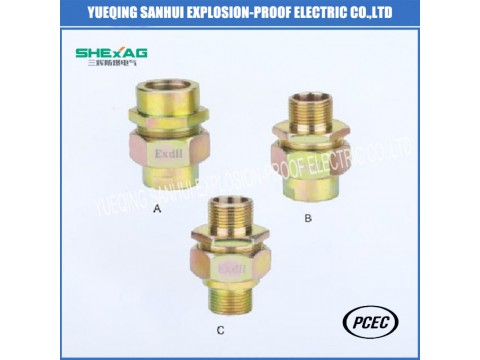

Explosion-proof union coupling for steel pipe

Product Features

1. Hazardous environment:division1&2,or21,22&23
2. Explosive gas atmosphere:Class IIA,IIB,IIC or inflammable dust environment.
3. Indoor or outdoor(IP65,IP66*).
4. It is widely used in the fields of oil,chemical industry,aerospace,military and so on.
5. It is made of carbon steel or stainless steel by mechanical cable clamping device.

For materials,we can provide carbon steel,brass,and stainless steel materials,and for stainless steel ,it used mostly.

Specifications	A    AG	Cable range (mm)	Total length C(mm)	Ex-mark	Protection Level
SHBDM-11 G1/2	G1/2	10-14	66	Exd IIC Gb	IP66
SHBDM-11 G3/4	G3/4	11-18	66
SHBDM-11 G1	G1	14-26	82
SHBDM-11 G1 1/4	G1 1/4	18-30	85
SHBDM-11 G1 1/2	G1 1/2	25-37	85
SHBDM-11 G2	G2	29-42	90
SHBDM-11 G2 1/2	G2 1/2	29-56	90
SHBDM-11 G3	G3	41-80	90

Note: NPT thread can also be provided
