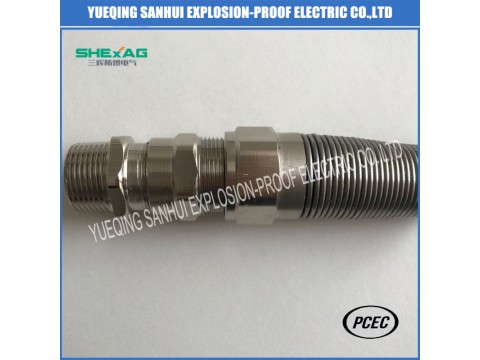

New products strain relief metal cable gland for armored cable,for double compression cable gland
It can protect cable from too many bending,and damage
Execution standard:GB3836.1,GB3636.3
Explosion proof mark: Exd IIC Gb/Exe II G/Ex tD A21 IP68
Thread:Metric is standard,if there is special requirement,such as G,NPT thread,please specify When ordering.
Product materials:304SS,316L,H62
(D)Specification
Φ Cable range
Thread length
(Φ) Max diameter
h(mm) Armored layer thickness range
()Armored cable diameter(outlet)
()Cable diameter (Inlet)
Standard
Optional(K)
M20*1.5A
NPT1/2"A
G1/2"A
4-8
--
5.5-12
15
30
0.3-1.0
M20*1.5B
NPT1/2"B
G1/2"B
6.5-10.5
--
9.5-16
15
30
0.3-1.0
M20*1.5C
NPT1/2"C
G1/2"C
10-14.5
6-12
12.5-20.5
15
30
0.3-1.0
M25*1.5B
NPT3/4"B
G3/4"B
10-14.5
6-12
12.5-20.5
15
37
0.3-1.0
M25*1.5C
NPT3/4"C
G3/4"C
12.5-19.5
9-15
17-26
15
37
0.4-1.2
M32*1.5B
NPT1"B
G1"B
12.5-19.5
9-15
17-26
19
45
0.4-1.2
M32*1.5C
NPT1"C
G1"C
19-25.5
14-22
22-33
19
45
0.4-1.4
M40*1.5B
NPT1 1/4"B
G1 1/4"B
19-25.5
14-22
22-33
19
55
0.6-1.9
M40*1.5C
NPT1 1/4"C
G1 1/4"C
25-31
19-28
28-41
19
55
0.6-2.2
For more details,welcome to check with us,and for other products,welcome to check our website:www.exproofcablegland.com
Cuztomization is accepted
