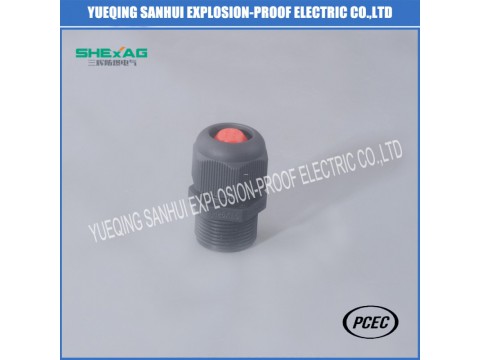

It is made of engineering plastics,with a strong anti-corrosion and waterproof function,which is used for cable entry ,and suitable for increased safety enclosure.
Outline dimension
| Specifications | A AG | Cable range (mm) | Thread Length B(mm) | C (mm) |
| SHBDM-11M16 | M16*1.5 | 5-10 | 8 | 35 |
| SHBDM-11M20 | M20*1.5 | 6-12 | 11 | 40 |
| SHBDM-11M25 | M25*1.5 | 10-14 | 11 | 40 |
| SHBDM11-M32 | M32*1.5 | 13-19 | 11 | 43 |
| SHBDM-11M40 | M40*1.5 | 17-26 | 15 | 59 |
| SHBDM-11M50 | M50*1.5 | 24-36 | 15 | 66 |
| SHBDM-11M63 | M63*1.5 | 37-44 | 18 | 68 |
