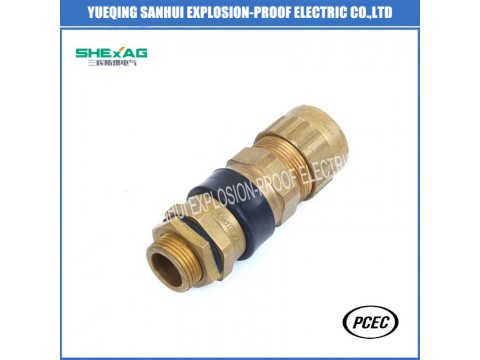

BDM-17 Explosion-proof type flameproof cable glands IP68 for armored cable
Product Features
- It is applicable to steel wire armored,steel tape armored,braid armored,marine weaving and lead sheathed cable(with earth tag/earth plug)
- One-way pressure armored cable device which is suitable for all types of armored cable,sample installation and avoid the installation error.
- Provide for explosive wires across the puddle
- Materials:Brass,brass nickel planted or stainless steel304,316L
- Sealing ring materials:silicon rubber(-60ºC- +80ºC)
- Waterproof design
- For distrit2,distrit1,21 area and 22 area
- Explosion-proof mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68
Specifications
AG
Thread Length GL
Inner cable A
Outer cable B
G
M
NPT
SHBDM-17-01
M16
3/8
15
3.0-8.0
5.5-12
70
M20S
1/2
15
7-11.9
9.5-16.0
70
SHBDM-17-02
M20
1/2
15
9-14.3
12.5-20.5
81
SHBDM-17-03
M25
3/4
15
12.0-20.2
16.9-26.0
91
SHBDM-17-04
M32
1
15
17.6-26.5
22.0-33.0
96
SHBDM-17-05
M40
1 1/4
15
23.1-32.5
28.0-41.0
107
SHBDM-17-06
M50
1 1/2
15
31.5-42
38.0-52.5
132
SHBDM-17-07
M63
2
15
40-54
46.0-65.3
145
SHBDM-17-08
M75
2 1/2
15
50.5-65
57.0-78.0
154
