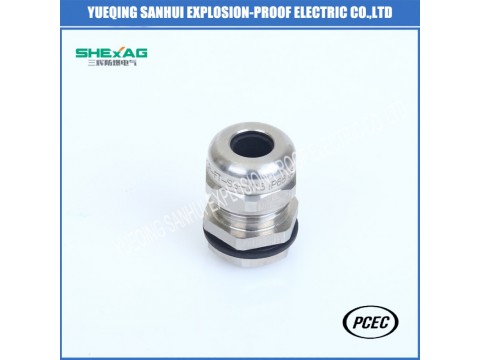

Waterproof/dustproof straight head Stainless steel cable glands IP68

Click image to view original image
Brand: Sanhui
Material: SS304/SS316
Protecton level: IP68
Customization: accept
Price: 1.00USD/pcs
Min.Order: 100 pcs
Supply 10000 pcs
Delivery: Shipment within 7 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2021-10-10 03:01
Hits: 45659
Buy
Company Detail


Details
Product Features
Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board.Long thread type is used for the thin board.Long thread type is used for the thick board.
Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland lock nut until cable is secured.These cable glands are designed to withstand water,dust,salt,acid-base,alcohol,oil and common solvent.
Usage:Waterproof brass cable gland is the product of form a complete set of the cable,connector cable can be locked,the other end can access devices on the box body,also can choose thread access according to th import and export for internal thread electric devices.


Outline dimension


Code Item AG Cable range (mm) Thread O.D. (mm) Thread length (mm)GL Spanner size (mm)
SH-PG7 PG7 6.5-3 12.5 7 14
SH-PG9 PG9 8-4 15.2 8 17
SH-PG11 PG11 10-5 18.6 8 20
SH-PG13.5 PG13.5 12-6 20.4 8 22
SH-PG16 PG16 14-10 22.5 9 24
SH-PG19 PG19 14-10 25 9 24/27
SH-PG21 PG21 18-13 28.3 9 30
SH-PG25 PG25 22-15 32 10 35
SH-PG29 PG29 25-18 37 11 40
SH-PG36 PG36 33-25 47 12 50
SH-PG42 PG42 38-32 54 13 57
SH-PG48 PG48 44-37 59.3 14 65
SH-PG63 PG63 52-42 72 15 77

For more details,welcome to check our website:www.exproofcablegland.com
